Brand | Noctua |
Model | NF-F12 PWM |
Type | Case Fan |
Compatibility | Case |
Fan Size | 120mm |
Bearing Type | SSO2 Bearing (second generation self-stabilising oil-pressure bearing) |
RPM | 1500 RPM +/- 10% max., 1200 RPM +/- 10% (w/ L.N.A), 300 RPM +/- 10% min. (via PWM control) |
Air Flow | 93.40 m3/h max., 74.30 m3/h (w/ L.N.A.) |
Noise Level | 22.40 dBA, 18.60 dBA (w/ L.N.A.) |
Power Connector | 4 Pin |
Color | Brown |
LED | No |
Features | Focused Flow frame for pressure demanding applications such as heatsinks and radiators.Advanced aerodynamic design measures improve efficiency and make the fan's sound pattern more agreeable to the human ear.Integrated Anti-Vibration Pads minimise the transmission of minute vibrations.SSO2 Bearing and a metal bearing shell guarantee superior long-term stability.Low-Noise Adaptor reduces the maximum fan speed from 1500 to 1200 RPM. |
Dimensions | 120.00 x 120.00 x 25.00mm |

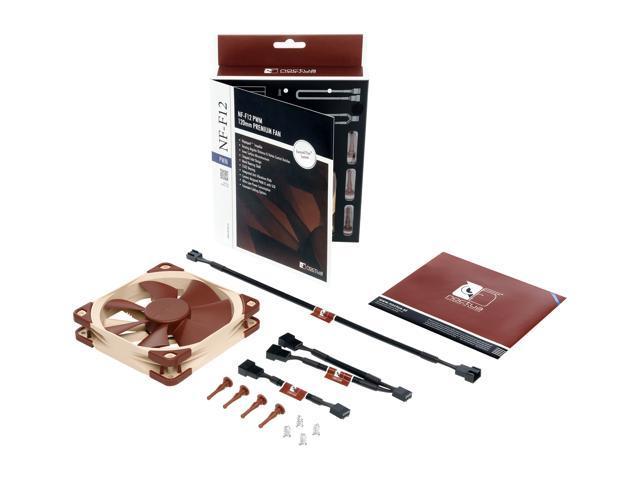

Package Contents | Low-Noise-Adapter (L.N.A)Extension CablePWM Y-CableAnti-Vibration MountsFan Screws |
Warranty | 2 Years |
Country of Origin | China |
