MSI H310M Pro-VDH Plus Motherboard (Intel Socket 1151/9th And 8th Generation Core Series CPU/Max 32GB DDR4 2666MHz Memory)
| Summary | |
|---|---|
| Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket | |
| Supports DDR4 Memory, up to 2666MHz | |
| Audio Boost: Reward your ears with studio grade sound quality. | |
| EZ Debug LED: Easiest way to troubleshoot. | |
| X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device. | |
| Core Boost: With premium layout and fully digital power design to support more cores and provide better performance. | |
Description:
- Cooling : Stay cool
- Cooling your PC is essential for reliable performance. We've made sure to include enough fan headers with full control to allow you to cool your system to the max.
- Display : Enjoy the latest video standards
- Supporting the latest display connectors for new technologies (OLED, HDR) and legacy connectors for beamers, MSI motherboards are designed to make life easier for any professional user.
- Audio : Professional sound quality
- Get the most immersive sound experience. MSI Audio Boost delivers the highest sound quality through the use of premium quality audio components. This lets you enjoy breathtaking, game-changing sound to create the most dynamic soundscapes.
- Network : Stable, secure & fast networking
- Optimized for professional and multimedia use, this generation comes equipped with a high quality network solution ready to serve you with 24/7 reliability when transferring big data.
- Memory : Unmatched memory performance
- MSI motherboards are crammed with features to fuel your system's memory with more speed, higher overclockability and increased stability.
- Tuning : Designed for limitless Tuning
- Founded on experience and with a long history of creating the best performing motherboards packed with smart features, you can count on this motherboard to deliver the best performance under the most extreme conditions. Countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker.
- USB : Maximize your USB device performance
- Transfer lots of data, music and movies over USB faster than ever. MSI offers a wide variety of options to connect and boost your USB 3.1 devices, delivering lightning-fast transfer speeds!
- Software : APPS TO GREATLY IMPROVE EFFICIENCY
- With years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. Use these tools to get the most out of your motherboard and achieve victory when gaming.
- Quality & Protection : Built on everlasting quality
- Using only the finest quality components and integrating the latest technological innovations delivers the best possible professional experience. Rigorous quality testing under the most extreme conditions ensures a super reliable, long-lasting and high performance motherboard.
- BIOS : A user-friendly BIOS
- We made sure our BIOS contains all the latest options and is easy to use for everyone. The extensive features found in CLICK BIOS 5 let you fine-tune your system to deliver reliable maximum performance.
| Brand | MSI |
| Model | H310M-PRO-VDH-PLUS |
| Processor | Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket |
| Chipset | Intel® H310 Chipset This chipset is ME11 firmware based and doesn’t feature SDA3.0. |
| Memory | 2 x DDR4 memory slots, support up to 32GB, Supports DDR4 2666/ 2400/ 2133 MHz, Supports Dual-Channel mode, Supports non-ECC, un-buffered memory, Supports Intel® Extreme Memory Profile (XMP) - *2666 MHz for I7 and I5 processors only. |
| Slots | 1 x PCIe 3.0 x16 slot, 2 x PCIe 2.0 x1 slots |
| Onboard Graphics | 1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz, 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz, 1 x HDMI™ port, supports a maximum resolution of 4096x2160@30Hz |
| Storage | Intel® H310 Chipset, 4 x SATA 6Gb/s ports, Supports Intel® Rapid Storage Technology |
| USB | Intel® H310 Chipset, 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector), 6 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector) |
| Audio | Realtek® ALC887 Codec, 7.1-Channel High Definition Audio |
| LAN | 1 x RTL8111H Gigabit LAN controller |
| Internal Connectors | 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 4 x SATA 6Gb/s connectors, 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports), 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports), 1 x Clear CMOS jumper, 2 x Front panel connectors, 1 x Serial port connector, 1 x TPM module connector, 1 x Chassis Intrusion connector, 1 x Front panel audio connector, 1 x 4-pin CPU fan connector, 1 x 4-pin system fan connector |

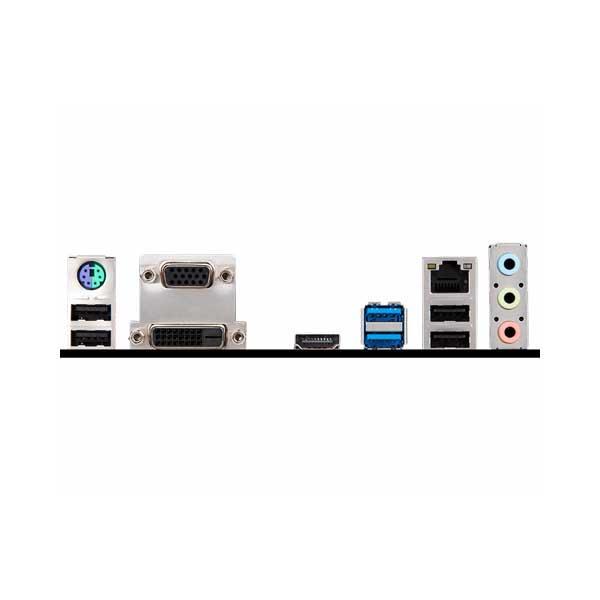

| Back Panel Ports | PS/2 Combo Port, VGA Port, HDMI Port, USB 3.1 Gen1, LAN Port, HD Audio Connectors, USB 2.0 Port, DVI-D Port, USB 2.0 Port |
| Dimensions | 8.9 in. x 7.3 in. (22.6 cm x 18.5 cm), m-ATX Form Factor |
| Mounting | 6 mounting holes |
| Operating System | Support for Windows® 10 64-bit |
| Warranty | 3 Years |
| Country Of Origin | China |
