Components > Core > Motherboard > MSI H310M PRO-M2 Plus Motherboard (Intel Socket 1151/9th And 8th Generation Core Series CPU/Max 32GB DDR4 2666MHz Memory)

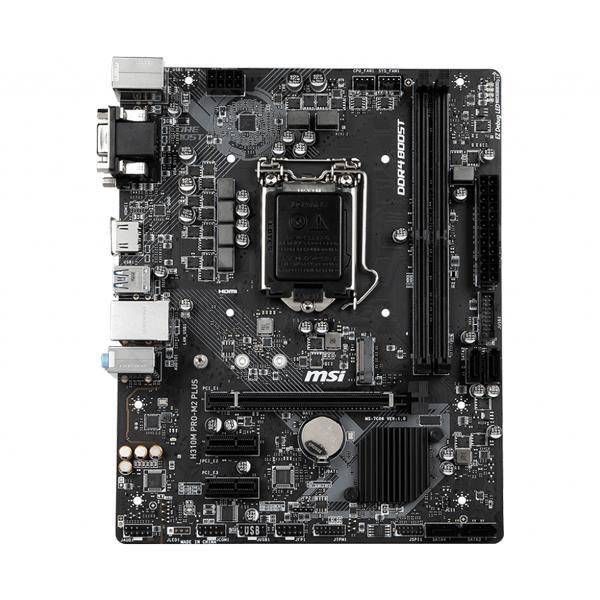

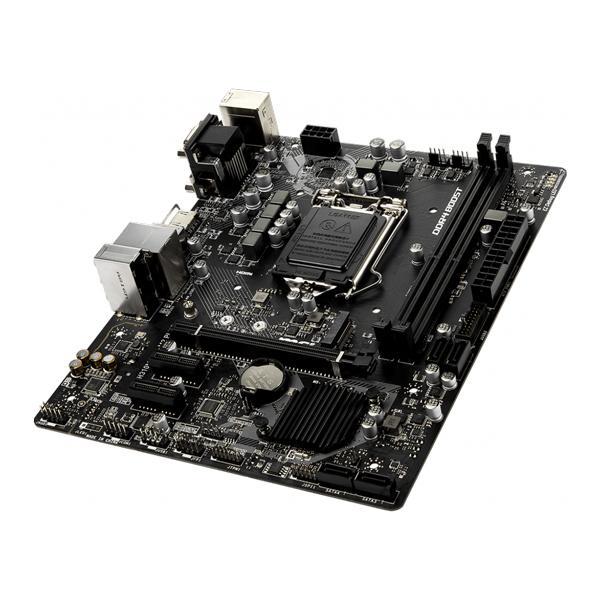

MSI H310M PRO-M2 Plus Motherboard (Intel Socket 1151/9th And 8th Generation Core Series CPU/Max 32GB DDR4 2666MHz Memory)
MSI H310M PRO-M2 Plus Motherboard (Intel Socket 1151/9th And 8th Generation Core Series CPU/Max 32GB DDR4 2666MHz Memory)
MSI H310M PRO-M2 Plus Motherboard (Intel Socket 1151/9th And 8th Generation Core Series CPU/Max 32GB DDR4 2666MHz Memory)
MSI H310M PRO-M2 Plus Motherboard (Intel Socket 1151/9th And 8th Generation Core Series CPU/Max 32GB DDR4 2666MHz Memory)
MSI H310M PRO-M2 Plus Motherboard (Intel Socket 1151/9th And 8th Generation Core Series CPU/Max 32GB DDR4 2666MHz Memory)
MSI H310M PRO-M2 Plus Motherboard (Intel Socket 1151/9th And 8th Generation Core Series CPU/Max 32GB DDR4 2666MHz Memory)
MSI H310M PRO-M2 Plus Motherboard (Intel Socket 1151/9th And 8th Generation Core Series CPU/Max 32GB DDR4 2666MHz Memory)
MSI H310M PRO-M2 Plus Motherboard (Intel Socket 1151/9th And 8th Generation Core Series CPU/Max 32GB DDR4 2666MHz Memory)

MSI

MSI H310M PRO-M2 Plus Motherboard (Intel Socket 1151/9th And 8th Generation Core Series CPU/Max 32GB DDR4 2666MHz Memory)

Summary
Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
Supports DDR4 Memory, up to 2666MHz
DDR4 Boost: Advanced technology to deliver pure data signals for the best gaming performance and stability.
Audio Boost: Reward your ears with studio grade sound quality.
M.2 and NVMe support, up to 20 Gb/s using PCI-Express Gen2 x4.
EZ Debug LED: Easiest way to troubleshoot.
PCI-E Steel Slot: Protecting VGA cards against bending for better performance, stability and strength.
X-Boost: Software that auto-detects and allows you to boost the performance of any storage, Optane or USB device.
Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.

₹5,100Free Delivery
(inclusive of all taxes)

Ships in 1-2 days


  • 3 Years Warranty

  • 7 day replacement

Description:

    BrandMSI
    ProcessorSupports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
    ChipsetIntel® H310 Chipset: This chipset is ME11 firmware based and doesn't feature SDA3.0
    Memory2 x DDR4 memory slots, support up to 32GB, Supports DDR4 2666/ 2400/ 2133 MHz, Dual channel memory architecture, Supports non-ECC, un-buffered memory, Supports Intel® Extreme Memory Profile (XMP)
    Slots1 x PCIe 3.0 x16 slot, 2 x PCIe 2.0 x1 slots
    Onboard Graphics1x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz1, 1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1, 1x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@30Hz1, *No Display support when using the Processor model with suffix “F”, Supports up to 2 displays simultaneously
    StorageIntel® H310 Chipset, 4 x SATA 6Gb/s ports1, 1 x M.2 slot (Key M), Support up to PCIe 2.0 x4 and SATA 6Gb/s, Supports 2242/ 2260 /2280 storage devices, SATA1 port will be unavailable when an M.2 SATA SSD is installed in the M2_1 slot.
    USBIntel® H310 Chipset, 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connectors), 6 x USB 2.0 (High-speed USB) ports (4 Type-A ports on the back panel, 2 ports available through the internal USB connectors)
    AudioRealtek® ALC887 Codec, 7.1-Channel High Definition Audio
    LAN1 x Intel I219-V Gigabit LAN controller
    Internal connectors1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 4 x SATA 6Gb/s connectors, 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports), 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports), 1 x 4-pin CPU fan connector, 1 x 4-pin system fan connector, 1 x Front panel audio connector, 1 x Serial port connector, 2 x Front panel connectors, 1 x TPM module connector, 1 x Chassis Intrusion connector, 1 x Clear CMOS jumper

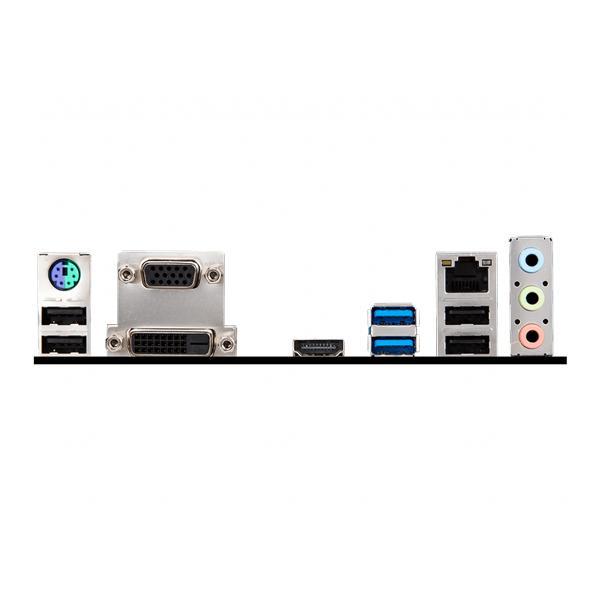

    Back panel portsPS/2 Combo, VGA, HDMI, USB 3.1 Gen1, LAN, HD Audio Connectors, DVI-D, USB 2.0
    Dimensions9.1 in. x 7.3 in. (23.0 cm x 18.5 cm), m-ATX Form Factor
    Mounting6 mounting holes
    Operating SystemSupport for Windows® 10 64-bit
    Warranty3 Years
    Country Of OriginChina
