| Brand | Gigabyte |
| Model | Z590 UD AC |
| CPU Socket Type | LGA 1200 |
| CPU Type | Supports 11th / 10th Gen Intel Core processors, Supports Intel Pentium / Celeron processors |
| Chipset | Intel Z590 |
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
| Number of Memory Slots | 4x288pin (DDR4) |
| Memory Standard | DDR4 5333(OC) / 5133(OC) / 5000(OC) / 4933(OC) / 4800(OC) / 4700(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3666(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3300(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 (11th Generation Intel Core i9/i7/i5 processors), DDR4 2933 / 2666 / 2400 / 2133 (10th Generation Intel Core i9/i7 processors), DDR4 2666 / 2400 / 2133 (10th Generation Intel Core i5/i3/Pentium/Celeron processors) |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express 4．0 x16 | 1 x PCI Express 4.0 x16 |
| PCI Express 3．0 x16 | 1 x PCI Express 3.0 x16 (PCIEX4) |
| PCI Express x1 | 2 x PCI Express 3.0 x1 |
| SATA 6Gb/s | 5 x SATA 6Gb/s |
| M．2 | CPU - 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4 SSD support) (M2P_CPU) , Chipset - 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB), 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 3.0 x4/x2 SSD support) (M2M_SB), * Supported by 11th Generation processors only. |
| Intel Optane Ready | Yes |
| SATA RAID | 0/1/5/10 |
| Audio Channels | 7.1 Channels |
| Max LAN Speed | 10/100/1000/2500Mbps |
| Wireless LAN | Intel Wi-Fi AC 9462 |
| Bluetooth | Bluetooth 5.1 |

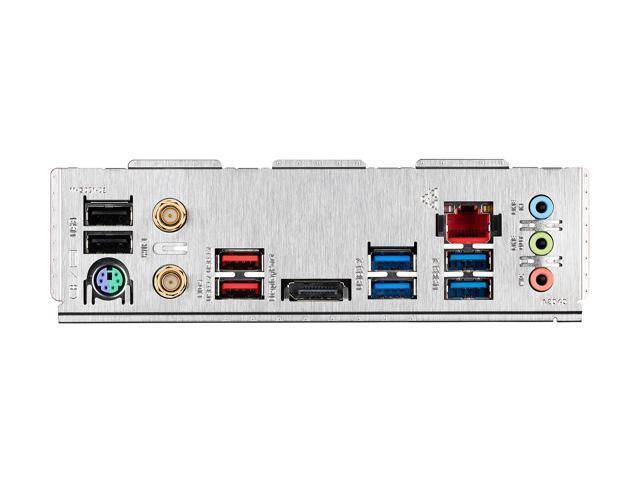

| Back I/O Ports | 1 x PS/2 keyboard/mouse port, 2 x SMA antenna connectors (1T1R), 1 x DisplayPort, 2 x USB 3.2 Gen 2 Type-A ports (red), 4 x USB 3.2 Gen 1 ports, 2 x USB 2.0/1.1 ports, 1 x RJ-45 port, 3 x audio jacks |
| Onboard USB | 1 x USB 3.2 Gen 1 header, 1 x USB Type-C header, with USB 3.2 Gen 1 support, 2 x USB 2.0/1.1 headers |
| Other Connectors | 1 x CPU fan header, 4 x system fan headers, 2 x addressable LED strip headers, 2 x RGB LED strip headers, 1 x Q-Flash Plus button, 1 x front panel header, 1 x front panel audio header, 1 x S/PDIF Out header, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only), 2 x Thunderbolt add-in card connectors, 1 x serial port header, 1 x Clear CMOS jumper, * All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W. |
| Form Factor | ATX |
| LED Lighting | RGB |
| Power Pin | 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x 4-pin ATX 12V power connector, Windows Compatibility |
| Windows 11 | Supported |

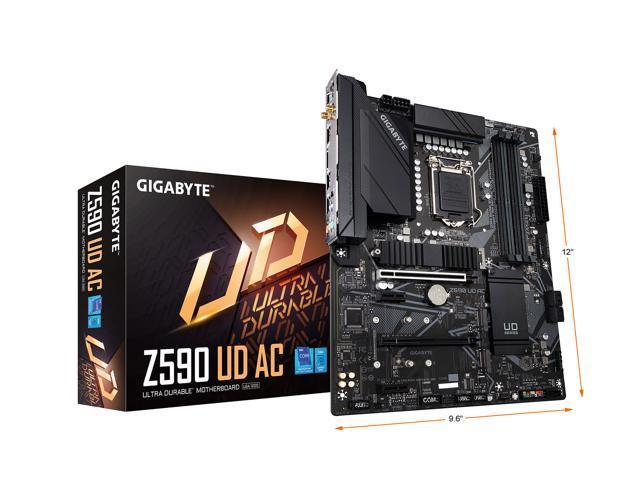

| Dimensions (W x L) | 12.0" x 9.6" |
