| Brand | Asus |
| CPU | Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPUSupports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel® H410 |
| Memory | 2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *Dual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP)OptiMem* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Graphic | Integrated Graphics Processor *1 x D-Sub1 x HDMI 1.4b*Graphics specifications may vary between CPU types. |
| Expansion Slots | Intel® 10th Gen Processors 1 x PCIe 3.0 x16 (x16 mode) Intel® H410 Chipset2 x PCIe 3.0 x1 |
| Storage | Total supports 1 x M.2 slots and 4 x SATA 6Gb/s portsIntel® H410 Chipset : 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)*14 x SATA 6Gb/s port(s) |
| LAN | Realtek® RTL8111H |
| Audio | Realtek ALC887 7.1-Channel High Definition Audio CODEC *2- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playbackAudio Feature :- LED-illuminated design - Audio Shielding- Dedicated audio PCB layers- Premium Japanese audio capacitors |
| USB Ports | Rear USB Port ( Total 4 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A)2 x USB 2.0 port(s)(2 x Type-A)Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s)4 x USB 2.0 port(s) |
| Software Features | ASUS Exclusive SoftwareArmoury CrateAI Suite 3- Performance And Power Saving UtilityTurboV EVOEPUDigi+ VRMFan Xpert- EZ updateASUS CPU-ZAI ChargerDAEMON ToolsNorton Anti-virus software (Free Trial for 60 days)WinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode |
| ASUS Special Features | ASUS 5X PROTECTION III- ASUS DIGI+ VRM- ASUS LANGuard- ASUS Overvoltage Protection- ASUS SafeSlot Core- ASUS Stainless-Steel Back I/OASUS Q-Design- ASUS Q-DIMM- ASUS Q-SlotASUS Thermal Solution- Aluminum heatsink design |

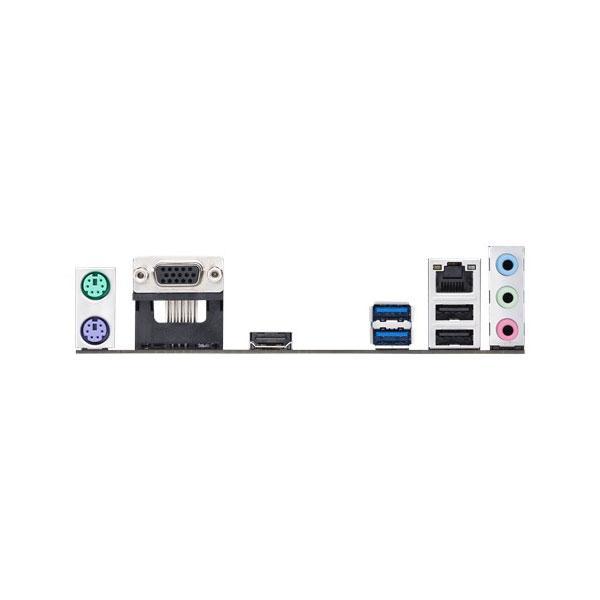

| Back I/O Ports | 1 x PS/2 keyboard (purple)1 x PS/2 mouse (green)1 x D-Sub1 x HDMI1 x LAN (RJ45) port(s)2 x USB 3.2 Gen 1 Type-A2 x USB 2.03 x Audio jack(s) |
| Internal I/O Ports | 1 x CPU Fan connector(s)1 x Chassis Fan connector(s)1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)1 x COM port(s) connector(s)4 x SATA 6Gb/s connector(s)1 x S/PDIF out header(s)1 x 24-pin EATX Power connector(s)1 x 8-pin EATX 12V Power connectors1 x Front panel audio connector(s) (AAFP)1 x Clear CMOS jumper(s)1 x System panel connector1 x Speaker connector |
| Accessories | I/O Shield2 x SATA 6Gb/s cable(s)1 x M.2 Anchor1 x Supporting DVDUser manual |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Operating System | Windows® 10 64-bit |
| Form Factor | mATX Form Factor8.9 inch x 7.9 inch ( 22.6 cm x 20.3 cm ) |
| Warranty | 3 Years |
| Country Of Origin | China |
