NVIDIA RTX A4000 16GB PCI Express 4.0 x16 Professional Video Graphics Card for Workstation & Data Centers

Specifications

Brand

PNY

Model

VCNRTXA4000-PB

Interface

PCI Express 4.0 x16

Chipmaker

NVIDIA

GPU

RTX A4000

CUDA Cores

6144

Memory Size

16GB

Memory Interface

256-bit

Memory Type

GDDR6

DirectX

DirectX 12

OpenGL

OpenGL 4.6

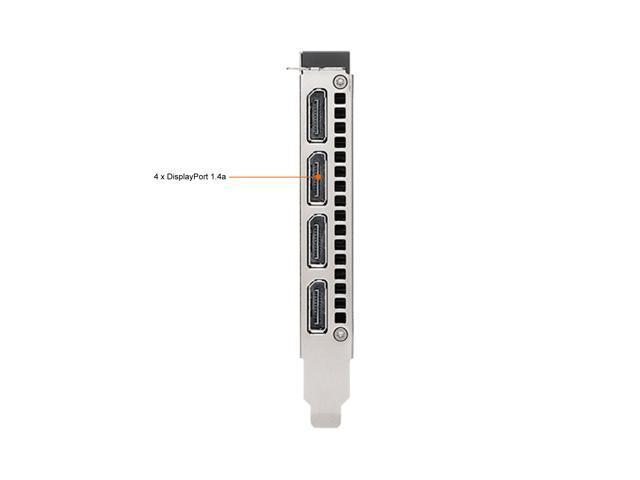

DisplayPort

4 x DisplayPort 1.4a

Digital Resolution

4x 4096 x 2160 @ 120 Hz4x 5120 x 2880 @ 60 Hz2x 7680 x 4320 @ 60 Hz

3D Vision Pro

Support via 3-pin mini DIN

Cooler

Active Fansink

Virtual Reality Ready

Yes

HDCP Ready

2.2

Operating Systems Supported

Microsoft Windows 10 (64-bit)Red Hat Enterprise Linux 7.xSUSE Linux Enterprise Desktop 15.xOpenSuse 15Fedora 31Ubuntu 18.04FreeBSD 11.xSolaris 11

System Requirements

Maximum Power Consumption: 140WMINIMUM SYSTEM HARDWARE REQUIREMENTS:Intel Core i5, i7, i9, or Xeon processor or laterAMD Ryzen or Epyc class processor or laterPCI Express 4.0 x16 (preferred) expansion slotSystem memory greater than or equal to GPU memory, twice the GPU memory recommendedInternet connection for driver installationDisplayPort 1.4a (preferred), HDMI, or DVI compatible display(s)

Auxiliary Power Connector

1 x 6-pin PCIe

Features

PERFORMANCE AND USEABILITY FEATURES:NVIDIA Ampere Architecture CUDA Cores Second Generation RT Cores Third Generation Tensor Cores PCIe Gen 4 Higher Speed GDDR6 MemoryError Correcting Code (ECC) on Graphics Memory Fifth Generation NVDEC Engine Seventh Generation NVENC EngineGraphics Preemption Compute PreemptionNVIDIA RTX IO MULTI-GPU TECHNOLOGY SUPPORT:NVIDIA SLI Technology DISPLAY FEATURES:NVIDIA Mosaic TechnologyDisplayPort 1.4aNVIDIA RTX Desktop Manager NVIDIA Quadro Sync IIFrame Lock Connector Latch OpenGL Quad Buffered Stereo Support Ultra-High-Resolution Desktop SupportProfessional 3D Stereo Synchronization SOFTWARE SUPPORT:NVIDIA RTX ExperienceSoftware Optimized for AINVIDIA CUDA Parallel Computing Platform Unified MemoryNVIDIA GPUDirect for VideoNVIDIA Enterprise-Management Tools

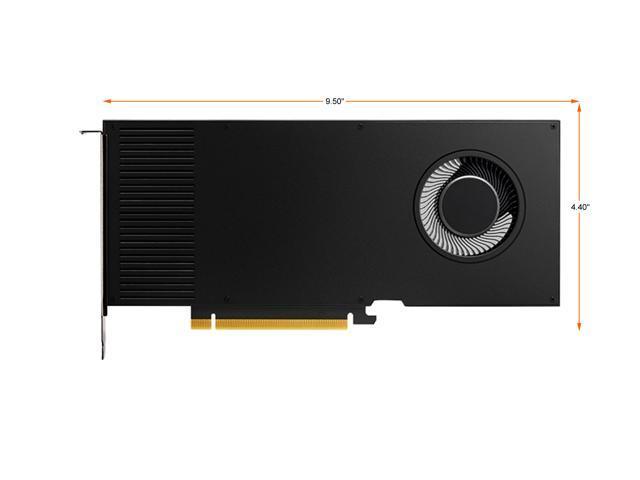

Dimensions (L x H)

9.50" x 4.40"

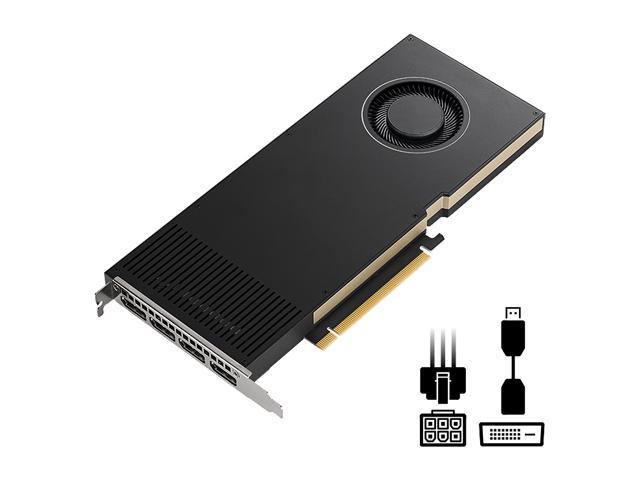

Package Contents

NVIDIA RTX A4000 professional graphics cardNVIDIA RTX Quick Start GuideNVIDIA RTX Support GuideDisplayPort to DVI-D SL adapterAuxiliary power cable

Slot Width

Single Slot
