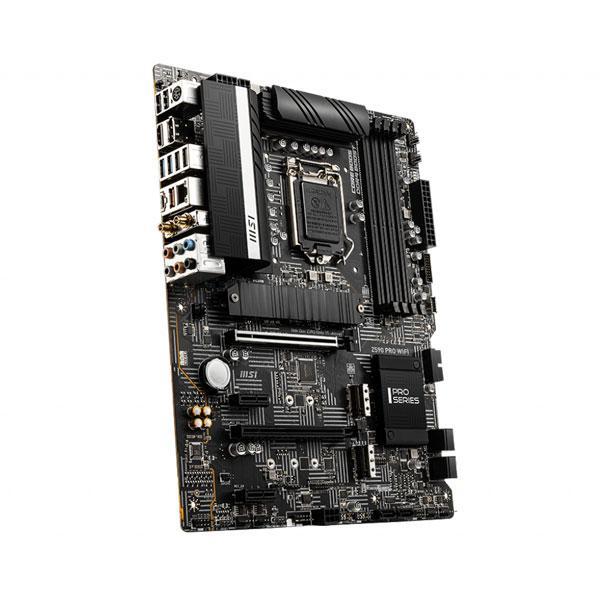

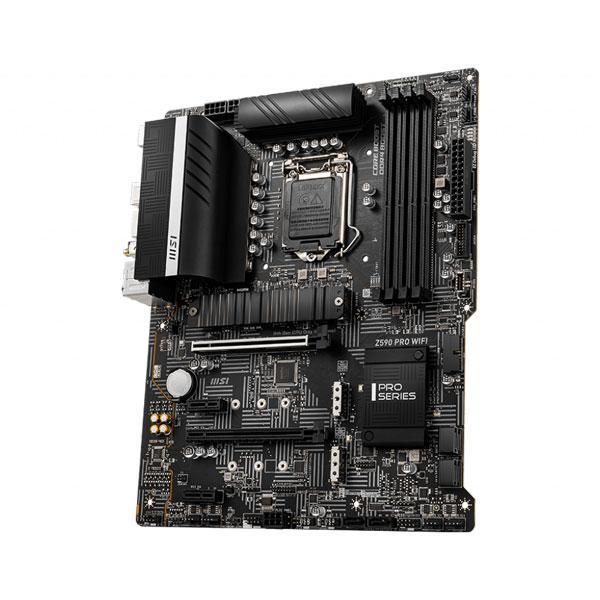

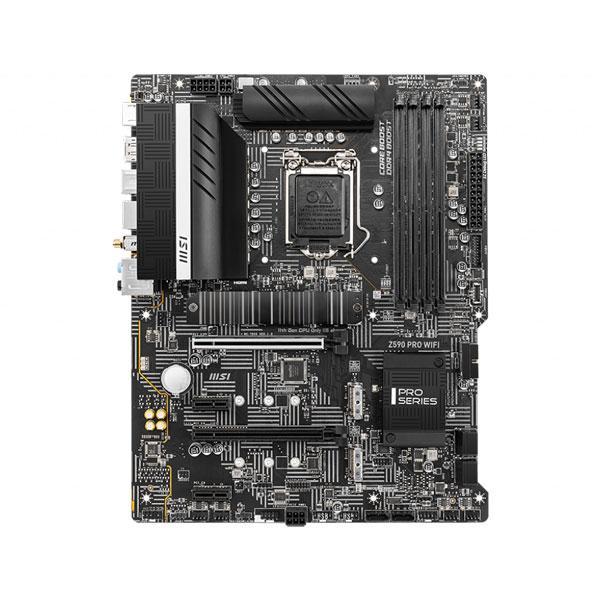

MSI Z590 PRO WiFi ProSeries Motherboard (ATX, 11th/10th Gen Intel Core, LGA 1200 Socket, DDR4, PCIe 4, M.2 Slots, USB 3.2 Gen 2, 2.5G LAN, DP/HDMI, Wi-Fi 6E)

Specifications

Brand

MSI

Processor

Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors1, Processor socket LGA1200, Please go to intel.com for compatibility informationSee supported processors

Operating System

Support for Windows® 10 64-bit

Chipset

Intel® Z590 Chipset

Memory

4x DDR4 memory slots, support up to 128GB 1Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)1Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)Max overclocking frequency:1DPC 1R Max speed up to 5333 MHz1DPC 2R Max speed up to 4700+ MHz2DPC 1R Max speed up to 4400+ MHz2DPC 2R Max speed up to 4000+ MHzSupports Dual-Channel modeSupports non-ECC, un-buffered memorySupports Intel® Extreme Memory Profile (XMP)Please refer www.msi.com for more information on compatible memory

Expansion Slot

1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 121x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz 12

Multi-GPU

Supports 2-Way AMD® CrossFire™ Technology

Storage

6x SATA 6Gb/s ports (from Z590 chipset)3x M.2 slots (Key M)M2_1 slot (from CPU) 1Available only on 11th Gen Intel® CPUSupports up to PCIe 4.0x4Supports 2242/ 2260/ 2280/ 22110 storage devicesM2_21, M2_32 slots (from Z590 chipset)Support up to PCIe 3.0x4Support up to SATA 6Gb/sSupport 2242/ 2260/ 2280 storage devicesIntel® Optane™ Memory Ready 3Support Intel® Smart Response Technology for Intel Core™ processors

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devicesSupports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

Intel® Z590 ChipsetIntel® Z590 Chipset1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel)6x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 4 ports are available through the internal USB 3.2 Gen 1 5Gbps connectors)USB 2.0 Hubs GL850G4x USB 2.0 Type-A ports on the back panel4x USB 2.0 ports are available through the internal USB 2.0 connectors

Audio

Realtek®ALC897 Codec7.1-Channel High Definition Audio

LAN

1x Intel® I225-V 2.5Gbps LAN controller

Intel WI-FI 6E AX210

The Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz/ 6GHz 1(160MHz) up to 2.4GbpsSupports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.22, FIPS, FISMA

Internal Connectors

1x 24-pin ATX main power connector1x 8-pin ATX 12V power connector1x 4-pin ATX 12V power connector1x 6-pin ATX PCIe power connector6x SATA 6Gb/s connectors3x M.2 slots (M-Key)1x USB 3.2 Gen 2 10Gbps Type-C port2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)1x 4-pin CPU fan connector1x 4-pin water-pump fan connector6x 4-pin system fan connectors1x Front panel audio connector2x System panel connectors1x Chassis Intrusion connector1x Clear CMOS jumper1x TPM module connector1x Serial port connector1x Tuning controller connector1x TBT connector (Supports RTD3)

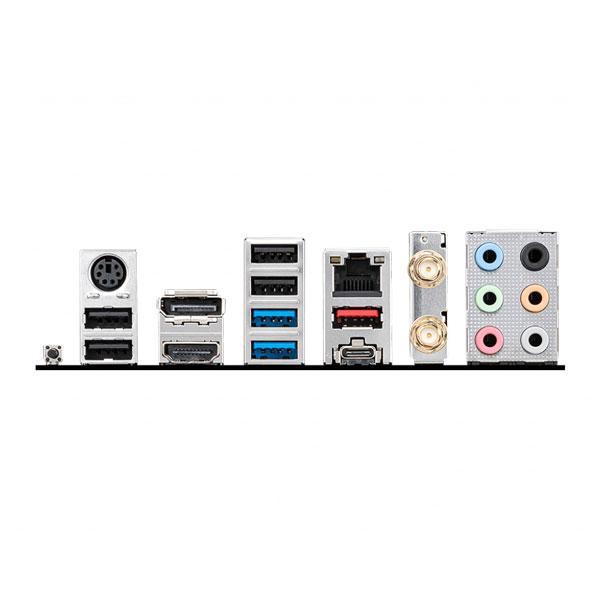

Back Panel Ports

Keyboard / MouseDisplayPortUSB 2.0LAN portWIFI / BluetoothAudio connectorFlash BIOS ButtonUSB 2.0HDMIUSB 3.2 Gen 1 5Gbps Type-AUSB 3.2 Gen 2x2 20Gbps Type-CUSB 3.2 Gen 2 10Gbps Type-A

Mounting

9 mounting holes

Dimensions

ATX Form Factor12 in. x 9.6 in. (30.5 cm x 24.4 cm)

Warranty

3 Years
