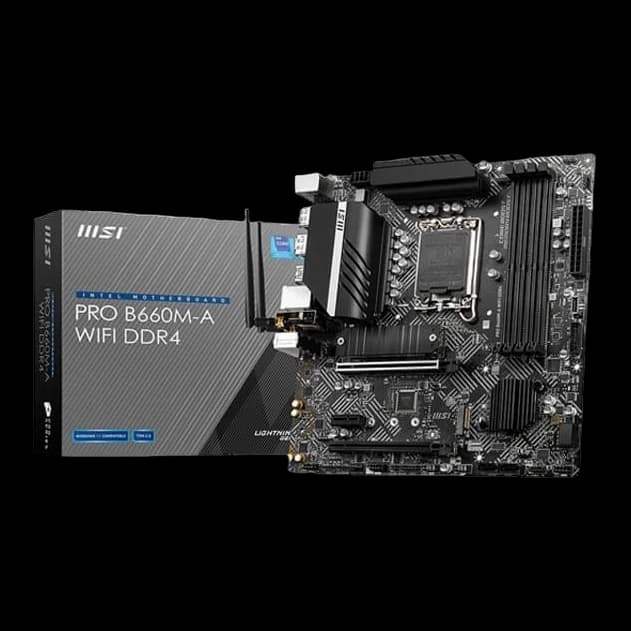

MSI PRO B660M-A WIFI DDR4 Motherboard
₹15,099GST included
Check Availability
- Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR4 Memory, up to 4800+(OC) MHz
- Core Boost: With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
- Premium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop works
Specifications
- Brand
- MSI
- CPU
- Supports 12th Gen Intel® Core™ Processors Processor socket LGA1700
- Chipset
- Intel® B660 Chipset
- Memory
- 4x DDR4 memory slots, support up to 128GB 1 Supports 1R 2133/2666/3200 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 4800+ MHz 1DPC 2R Max speed up to 4000+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 3600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memoryy Supports Intel® Extreme Memory Profile (XMP)
- Expansion Slot
- 2x PCIe x16 slots PCI_E1 (From CPU) Support PCIe 4.0 x16 PCI_E3 (From B660 chipset) Support PCIe 3.0 x4 1x PCIe 3.0 x1 slot (Fom B660 chipset)
- Onboard Graphics
- 2x HDMI 2.1 with HDR ports, supporting a maximum resolution of 4K 60Hz 2x DisplayPort 1.4 ports with HBR3, supporting a maximum resolution of 4K 60
- Multi-GPU
- Supports AMD® CrossFire™ Technology
- Audio
- Realtek® ALC897 Codec 7.1-Channel High Definition Audio
- Storage
- 4x SATA 6Gb/s ports (From B660 chipset) 2x M.2 slots (Key M) M2_1 slot (From CPU) Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_2 slot (From B660 chipset) Supports up to PCIe 4.0 x4 Supports up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel® Optane™ Memory Support Intel® Smart Response Technology for Intel Core™ processors
- RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- LAN
- 1x Realtek® RTL8125BG 2.5Gbps LAN controller
- Wi-Fi & Bluetooth®
- Intel® Wi-Fi 6 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2
- Power Connectors
- 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector
- Internal USB Connectors
- 1x USB 3.2 Gen 1 5Gbps Type-C connector (From B660 chipset) 1x USB 3.2 Gen 1 5Gbps Type-A connector (From ASM1074) Supports additional 2 USB 3.2 Gen 1 5Gbps ports 2x USB 2.0 Type-A connectors (From B660 chipset) Supports additional 4 USB 2.0 ports
- Fan Connectors
- 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2x 4-pin system fan connectors
- System Connectors
- 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x Tuning Controller connector 1x TBT connector (supports RTD3) 1x Serial port
- Jumpers
- 1x Clear CMOS jumper
- LED Features
- 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 4x EZ Debug LED
- Back panel ports
- Keyboard / Mouse DisplayPort USB 3.2 Gen 1 5Gbps Type-A LAN port Wi-Fi / Bluetooth Audio connector USB 2.0 HDMI USB 3.2 Gen 2 10Gbps Type-A
- Dimensions
- Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
- Warranty
- 3 Years
