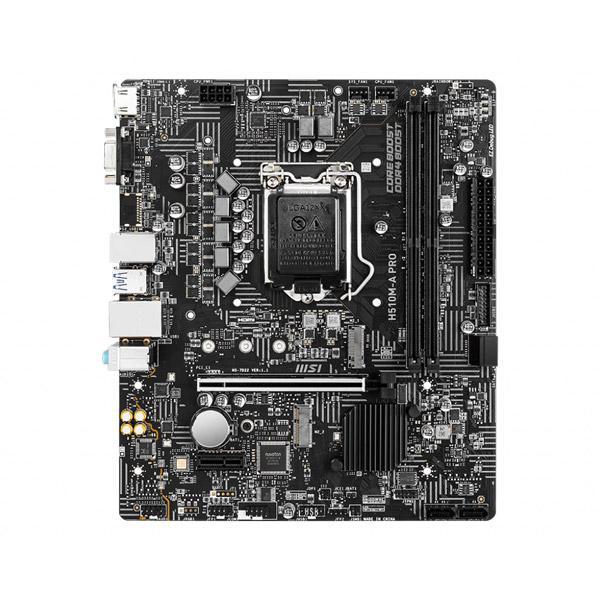

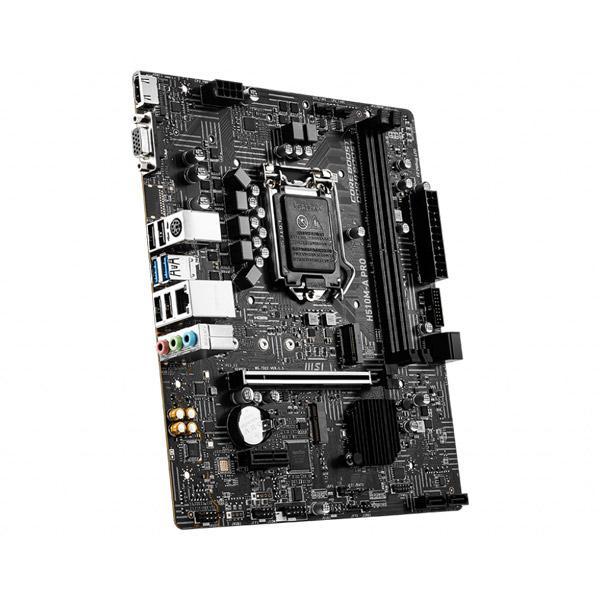

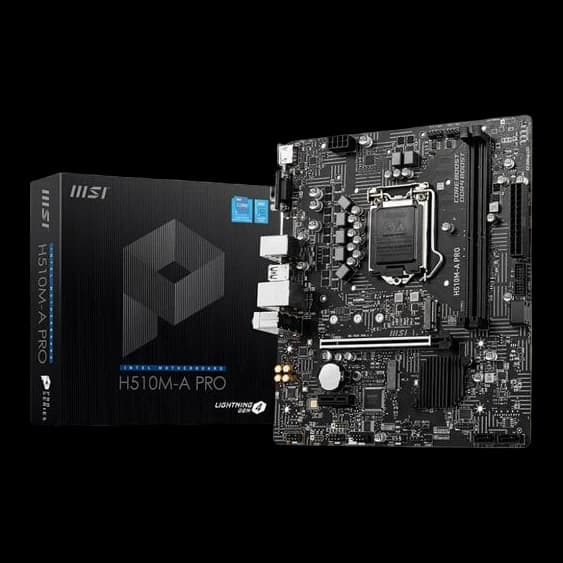

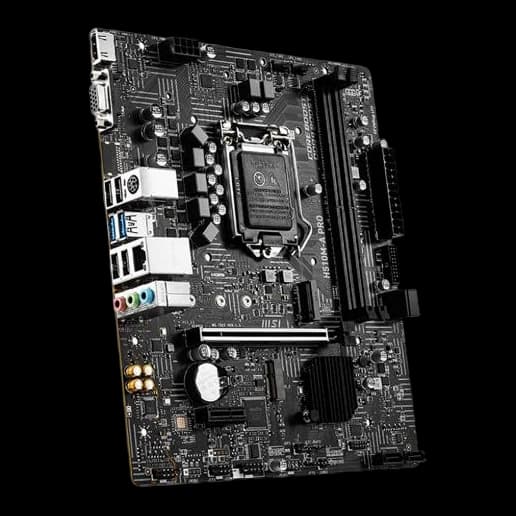

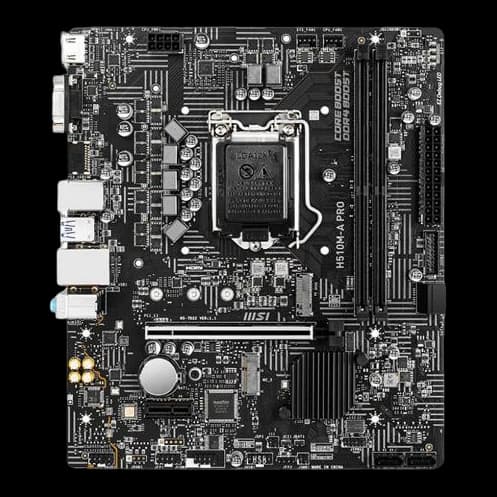

MSI H510M-A PRO Motherboard, Micro-ATX - Supports Intel Core 11th Gen Processors, LGA 1200-2 x DIMMs (3200MHz), 1 x PCIe 4.0 x16, 1 x M.2 Gen3, USB 3.2 Gen1, 1G LAN, HDMI

MSI · Motherboard

MSI H510M-A PRO Motherboard, Micro-ATX - Supports Intel Core 11th Gen Processors, LGA 1200-2 x DIMMs (3200MHz), 1 x PCIe 4.0 x16, 1 x M.2 Gen3, USB 3.2 Gen1, 1G LAN, HDMI

₹10,650GST included
Check Availability
  • Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 3200(Max) MHz
  • Core Boost: With premium layout and digital power design to support more cores and provide better performance.
  • DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
  • Lightning Fast Experience: PCIe 4.0
  • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
Build a PC in the builder
  • New and genuine, with the manufacturer’s warranty
  • Ships across India. Shipping · Warranty

Specifications

Brand
MSI
Processor
Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors Please go to www.intel.com for more compatibility information.
Operating System
Support for Windows® 10 64-bit
Hipset
Intel® H510 Chipset
Memory
2x DDR4 memory slots, support up to 64GB Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) Please refer to www.msi.com for more information on compatible memory.
Expansion Slot
1x PCIe x16 slot (From CPU) Support up to PCIe 4.0 for 11th Gen Intel® CPU Support up to PCIe 3.0 for 10th Gen Intel® CPU 1x PCIe 3.0 x1 slot (From PCH) 1x M.2 slot with E key for WiFi module only(M2_2)
Onboard Graphics
1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Storage
4x SATA 6Gb/s ports (From H510 Chipset) 1x M.2 slot (Key M) M2_1 slot (From H510 Chipset) Supports up to PCIe 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices SATA4 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
USB
Intel® H510 Chipset 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 ports (4 Type-A ports on the back panel(hub- GL850G), 2 ports available through the internal USB 2.0 connector)
Audio
Realtek® ALC897 Codec 7.1-Channel High Definition Audio
LAN
1x Intel® I219V 1Gbps LAN controller
Internal Conectors
1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 1x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector

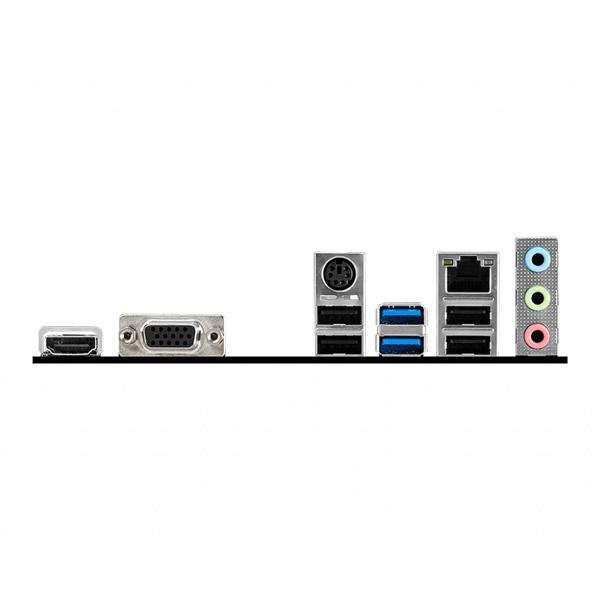

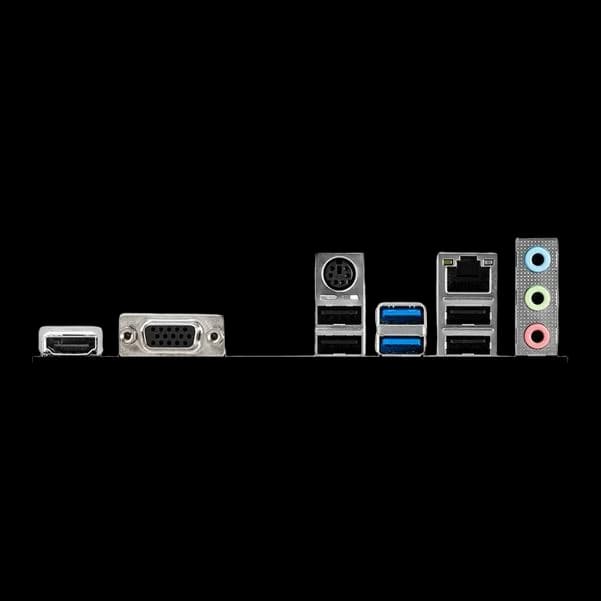

Back Panel Ports
HDMI VGA Mouse / Keyboard LAN port Audio connector USB 2.0 USB 3.2 Gen 1 5Gbps Type-A USB 2.0
Mounting
6 mounting holes
Dimensions
mATX Form Factor 9.29 x 7.95 in. (23.6 cm x 20.2 cm)
Warranty
3 Years
