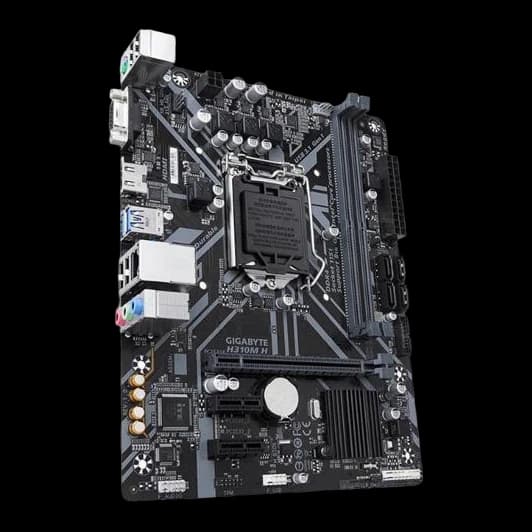

Gigabyte H310M H LGA 1151 (300 Series) Intel H310 HDMI SATA 6Gb/s USB 3.1 Micro ATX Intel Motherboard

Specifications

Brand

Gigabyte

Model

H310M H

CPU Socket Type

LGA 1151 (300 Series)

CPU Type

Support for 8th Generation Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors / Intel Pentium processors / Intel Celeron processors in the LGA1151 package* Not backward compatible with older generation of LGA 1151 CPUs

Chipset

Intel H310

Onboard Video Chipset

Integrated Graphics Processor - Intel HD Graphics support:1 x D-Sub port, supporting a maximum resolution of 1920x1200@60Hz1 x HDMI port, supporting a maximum resolution of 4096x2160@30Hz* Support for HDMI 1.4 version and HDCP 2.2.Maximum shared memory of 1GB

Number of Memory Slots

2x288pin

Memory Standard

DDR4 2666/ 2400/ 2133 * To support 2666 MHz or XMP memory, you must install an 8th Generation Intel Core i7/i5 processor.

Maximum Memory Supported

32GB

Channel Supported

Dual Channel

PCI Express 3．0 x16

1 x PCI Express x16 slot, running at x16(The PCIEX16 slot conforms to PCI Express 3.0 standard.)

PCI Express x1

2 x PCI Express x1 slots(The PCI Express x1 slots conform to PCI Express 2.0 standard.)

SATA 6Gb/s

4 x SATA 6Gb/s

Audio Chipset

Realtek ALC887

Audio Channels

2/4/5.1/7.1-channel* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

LAN Chipset

Realtek GbE LAN chip

Max LAN Speed

10/100/1000Mbps

PS/2

1 x PS/2 keyboard/mouse port

Video Ports

D-Sub

HDMI

1 x HDMI

RJ45

1 x RJ45

USB 3．1

2 x USB 3.1 Gen 1 ports

USB 1．1/2．0

4 x USB 2.0

Audio Ports

3 Ports
