| Brand | Gigabyte |

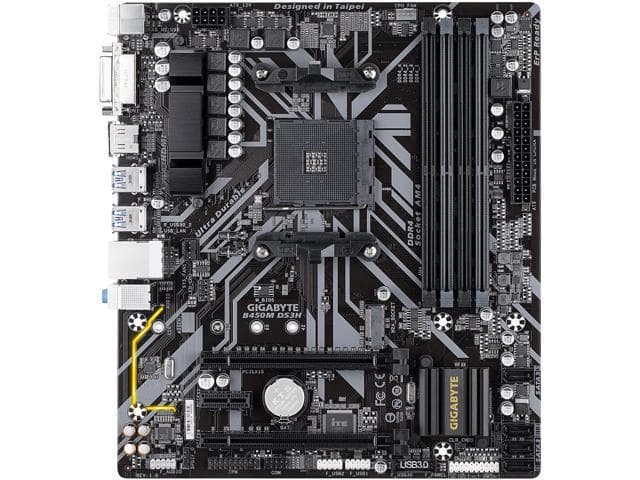

| Model | B450M DS3H |
| CPU Socket Type | AM4 |
| CPU Type | AM4 Socket: Supports AMD 3rd Gen Ryzen/2nd Gen Ryzen/1st Gen Ryzen / 2nd Gen Ryzen with Radeon Vega Graphics/1st Gen Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics Processors |
| Chipset | AMD B450 |
| Number of Memory Slots | 4x288pin |
| Memory Standard | DDR4 3600(O.C.)/ 3466(O.C.)/ 3200(O.C.)/ 2933/ 2667/ 2400/ 2133 MHz |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express 3．0 x16 | 1 x PCI Express x16 slot, running at x16 (PCIEX16)** For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.* The PCIEX16 slot conforms to PCI Express 3.0 standard.* Actual support may vary by CPU. |
| PCI Express 2．0 x16 | 1 x PCI Express x16 slot, running at x4 (PCIEX4) |
| PCI Express x1 | 1 x PCI Express x1 slot(The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.) |
| SATA 6Gb/s | 4 x SATA 6Gb/s |
| M．2 | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)* Supports only M.2 SATA SSDs when using an AMD Athlon-series / 7th Gen. A-series or Athlon X4 APU. |
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | Integrated Graphics Processor:1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz* The DVI-D port does not support D-Sub connection by adapter.1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz(Note)* Support for HDMI 2.0 version and HDCP 2.2.(Note)Maximum shared memory of 16GB(Note) Actual support may vary by CPU. |
| Audio Chipset | Realtek ALC887 |
| Audio Channels | 2/4/5.1/7.1-channel* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.Support for S/PDIF Out |
| LAN Chipset | Realtek GbE LAN chip |
| Max LAN Speed | 10/100/1000Mbps |
| Back I/O Ports | 1 x PS/2 keyboard/mouse port1 x DVI-D port1 x HDMI port4 x USB 3.1 Gen 1 ports4 x USB 2.0/1.1 ports1 x RJ-45 port3 x audio jacks |
| Onboard USB | 1 x USB 3.1 Gen 1 header2 x USB 2.0/1.1 headers |
| Other Connectors | 1 x CPU fan header1 x system fan header1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x CPU cooler LED strip/RGB LED strip header1 x Trusted Platform Module (TPM) header (2x10-pin, for the GC-TPM2.0 module only)1 x serial port header1 x Clear CMOS jumper |
| Form Factor | Micro ATX |
| LED Lighting | RGB |
| Dimensions (W x L) | 9.6" x 8.5" |
| Power Pin | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector |
| Features | Multi-Graphics Technology:Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologiesI/O Controller:iTE I/O Controller ChipH/W Monitoring:Voltage detectionTemperature detectionFan speed detectionOverheating warningFan fail warningFan speed control* Whether the fan speed control function is supported will depend on the cooler you install.BIOS:1 x 128 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Unique Features:Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.@BIOS3D OSDAutoGreenCloud StationEasyTuneFast BootGame BoostON/OFF ChargeRGB FusionSmart BackupSmart KeyboardSmart TimeLockSmart HUDSmart SurveySystem Information ViewerUSB BlockerV-TunerSupport for Q-FlashSupport for Xpress InstallBundle Software:Norton Internet Security (OEM version)cFosSpeedOperating System:Support for Windows 10 64-bitSupport for Windows 7 64-bit* To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.* Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7. |
| Warranty | 3 Years |
| Country Of Origin | China |
