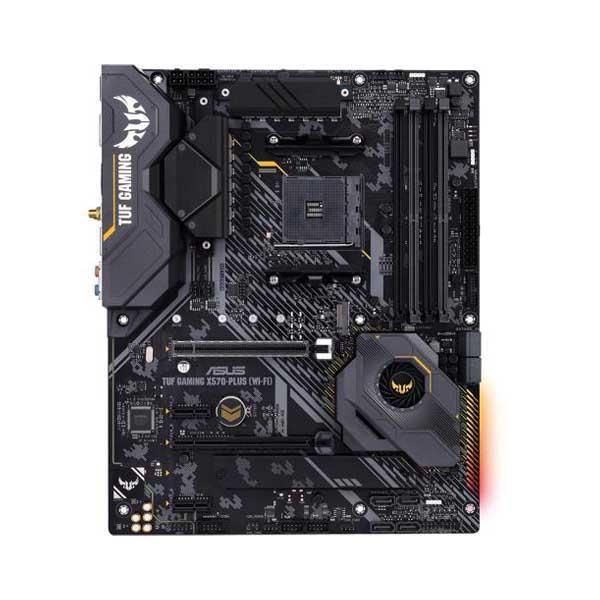

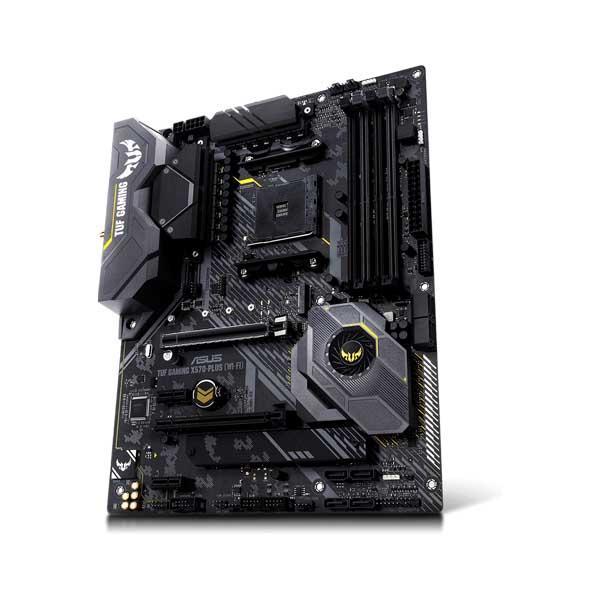

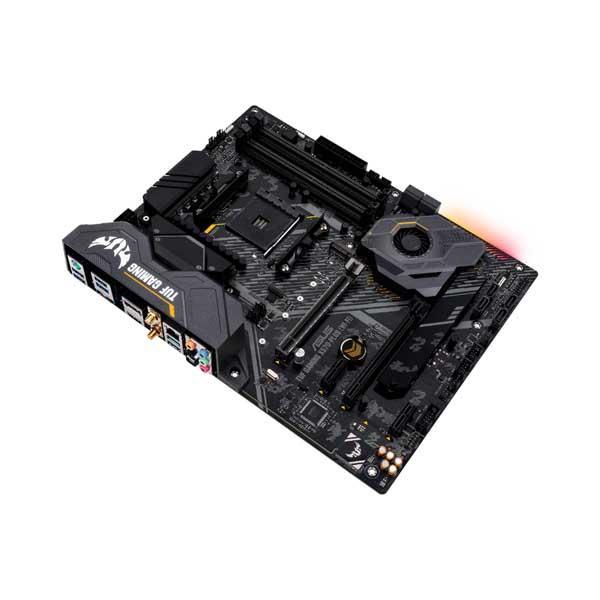

Asus TUF Gaming X570-Plus WiFi Motherboard (Amd Socket AM4/Ryzen Series CPU/Max 128GB DDR4 4400MHz Memory)
| Summary | |
|---|---|
| AMD AM4 Socket: Ready for 2nd and 3rd Gen AMD Ryzen™ processors | |
| Enhanced Power Solution: 12+2 Dr. MOS power stages, 6-layer PCB, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability | |
| Comprehensive Cooling: Active chipset heatsink, VRM heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4 | |
| Next-Gen Connectivity: Dual PCIe 4.0 M.2 and USB 3.2 Gen 2 Type-A /Type-C | |
| Gaming Networking: Exclusive Realtek® L8200A Gigabit Ethernet, Intel 2x2 802.11ac Wi-Fi with MU-MIMO support, Bluetooth 5.0, TUF LANGuard and TurboLAN technology | |
| Realtek S1200A Codec: Pristine audio quality with unprecedented 108dB signal-to-noise ratio for stereo line-out and 103dB SNR for line-in | |
| Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including addressable RGB strips | |
| TUF Gaming Alliance: ASUS hardware ecosystem ensures the best compatibility and complementary aesthetics from components to case | |
Description:
- DURABLE. STABLE. RELIABLE. - TUF Gaming X570-Plus (Wi-Fi) distills the essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, upgraded power solutions and a comprehensive set of cooling options, these motherboards deliver rock-solid performance with unwavering gaming stability.
- When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, the best compatibility, and complementary aesthetics from components to case.
- ROCK-SOLID PERFORMANCE: With upgraded power delivery and comprehensive cooling options to fuel AMD's latest CPUs, plus support for faster memory and storage, TUF Gaming X570-Plus (Wi-Fi) is the perfect foundation for your next high-core-count AMD battle rig.
- Dr. MOS: The TUF Gaming X570-Plus (Wi-Fi)'s CPU VRM utilizes 12+2 Dr. MOS power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that AMD's latest processors demand.
- EASY PC DIY: TUF Gaming motherboards are designed to be easy to set up and configure just the way you want, even for first-time builders. From the TUF Gaming Alliance ecosystem that makes compatibility and part-picking easy to a one-stop software portal for all your configurations, TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity.
- TUF gaming alliance: TUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger.
- Immersive Gaming: TUF Gaming X570-Plus (Wi-Fi) provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere.
- EXCLUSIVE GIGABIT ETHERNET: Experience ultra-fast gaming with the ASUS-exclusive Realtek® L8200A Gigabit Ethernet. With performance and stability enhancements, the LAN is optimized for CPU-efficient, low-latency data transfers.
- Intel Wireless-AC 9260 : INTEGRATED WI-FI 5 - TUF Gaming X570-Plus (Wi-Fi) features Intel Wireless AC-9260 Wi-Fi 5 (802.11ac) with 2x2 MU-MIMO and wide 160MHz channels, for wireless speeds of up to 1.73Gbps.* In fact, its integrated Wireless-AC 9260 Wi-Fi adapter pushes wireless data up to 2X faster — so you'll get fast, smooth transfers, even when your rig is further away from the router. Intel Wireless-AC 9260 also offers Bluetooth 5.0 for connections that are up to 2X faster than ever before, and with up to 4X the range.
- NETWORK-OPTIMIZATION SOFTWARE FOR CUSTOMIZABLE PACKET PRIORITIZATION: Turbo LAN with cFosSpeed traffic-shaping technology adds even more lag-reducing support and an intuitive user interface, so you'll reduce lag by up to 1.45X — with no expert knowledge. It even includes Game mode to prioritize game-related data transmissions, smoothing network operations every time you play!
- THE POWER OF AMD : AMD X570 CHIPSET - The AMD X570 chipset delivers outstanding overclocking capabilities for the latest AMD AM4 socket for 3rd and 2nd Gen AMD Ryzen™ /2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors. It is optimized for multiple GPU configurations, including NVIDIA SLI® and AMD CrossFireX™. It also supports x16 PCI Express® 4.0/3.0 lanes and provides 10Gb/s USB 3.2 Gen 2 ports and 6 Gb/s SATA ports for faster data retrieval.
- AMD AM4 SOCKET FOR 3RD AND 2ND GEN AMD RYZEN™ / 2ND AND 1ST GEN AMD RYZEN™ WITH RADEON™ VEGA GRAPHICS PROCESSORS
- The high-performance 3rd Gen AMD Ryzen™ processors are based on the next-gen 7nm Zen architecture and support up to 16 processor cores. AMD AM4-socket processors feature dual-channel DDR4 memory, native 10Gb/s USB 3.2 Gen 2 and x16 PCI Express® 4.0/3.0 lanes for superb performance.
| Brand | Asus |
| CPU Type | AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors. Due to CPU limitation, CPU cores supported varies by processors. |
| Chipset | AMD X570 |
| Memory | 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/5000(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory. Dual Channel Memory Architecture Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). The maximum memory frequency supported varies by processor. |
| Graphics | Integrated Graphics in AMD Ryzen™ 5000 G-Series/ 4000 G-Series/ 3000 G-Series/ 2000 G-Series Desktop Processors. Multi-VGA output support : HDMI/DisplayPort ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz - Supports DisplayPort with max. resolution 4096 x 2160 @ 60 Hz |
| Multi-GPU Support | Supports AMD CrossFireX™ Technology |
| Expansion Slots | AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors - 1 x PCIe 4.0 x16 (x16 mode), AMD Ryzen™ 5000 G-Series/ 4000 G-Series/ 2000 Series Desktop Processors - 1 x PCIe 3.0 x16 (x16 mode), AMD RyzenTM 3000 G-Series / 2000 G-Series Processors - 1 x PCIe 3.0/2.0 x16 (x8 mode), AMD X570 chipset - 1 x PCIe 4.0 x16 (max at x4 mode), 2 x PCIe 4.0 x1 |
| Storage | AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support, AMD Ryzen™ 5000 G-Series/ 4000 G-Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support AMD X570 chipset : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 8 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 |
| LAN | Realtek® L8200A, ASUS Turbo LAN Utility, TUF LANGuard |
| Wireless Data Network | Intel® Wireless-AC 9260, Wi-Fi 802.11 a/b/g/n/ac, Supports dual band frequency 2.4/5 GHz, Supports MU-MIMO, Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed |
| Bluetooth | Bluetooth® 5.0 |
| Audio | Realtek® ALC S1200A 8-Channel High Definition Audio CODEC, Audio Feature: - Exclusive DTS Custom for GAMING Headsets. - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality. |
| USB Ports | AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors : 4 x USB 3.2 Gen 1 port(s) (4 at back panel), AMD X570 chipset : 3 x USB 3.2 Gen 2 port(s) (3 at back panel, , 2 x Type-A+1 x USB Type-C®), AMD X570 chipset : 2 x USB 3.2 Gen 1 port(s) (2 at mid-board), AMD X570 chipset : 4 x USB 2.0 port(s) (4 at mid-board) |

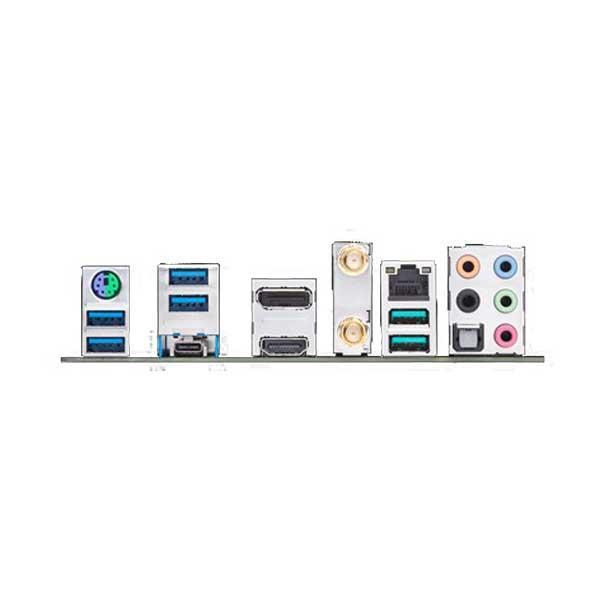

| Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s), 1 x DisplayPort, 1 x HDMI, 1 x LAN (RJ45) port(s), 1 x Optical S/PDIF out, 5 x Audio jack(s), 4 x USB 3.2 Gen 1 (up to 5Gbps) ports, 3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-CTM), ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0) |
| Internal I/O Ports | 2 x Aura RGB Strip Header(s), 1 x Addressable Gen 2 header(s), 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s), 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode), 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode), 1 x SPI TPM header, 8 x SATA 6Gb/s connector(s), 1 x CPU Fan connector(s), 1 x CPU OPT Fan connector(s), 3 x Chassis Fan connector(s), 1 x AIO_PUMP connector, 1 x 24-pin EATX Power connector(s), 1 x 8-pin ATX 12V Power connector(s), 1 x 4-pin ATX 12V Power connector(s), 1 x Front panel audio connector(s) (AAFP), 1 x System panel(s), 1 x Clear CMOS jumper(s), 1 x COM port header, 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports |
| Accessories | User´s manual, I/O Shield, 2 x SATA 6Gb/s cable(s), 1 x M.2 Screw Package, 1 x Supporting DVD, 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant), 1 x TUF GAMING Sticker, 1 x TUF Certification card(s) |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, F4 AURA ON/OFF, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Manageability | WOL by PME, PXE |
| Operating System | Windows® 10 64-bit |
| Form Factor | ATX Form Factor 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Warranty | 2 Years |
| Country Of Origin | China |
