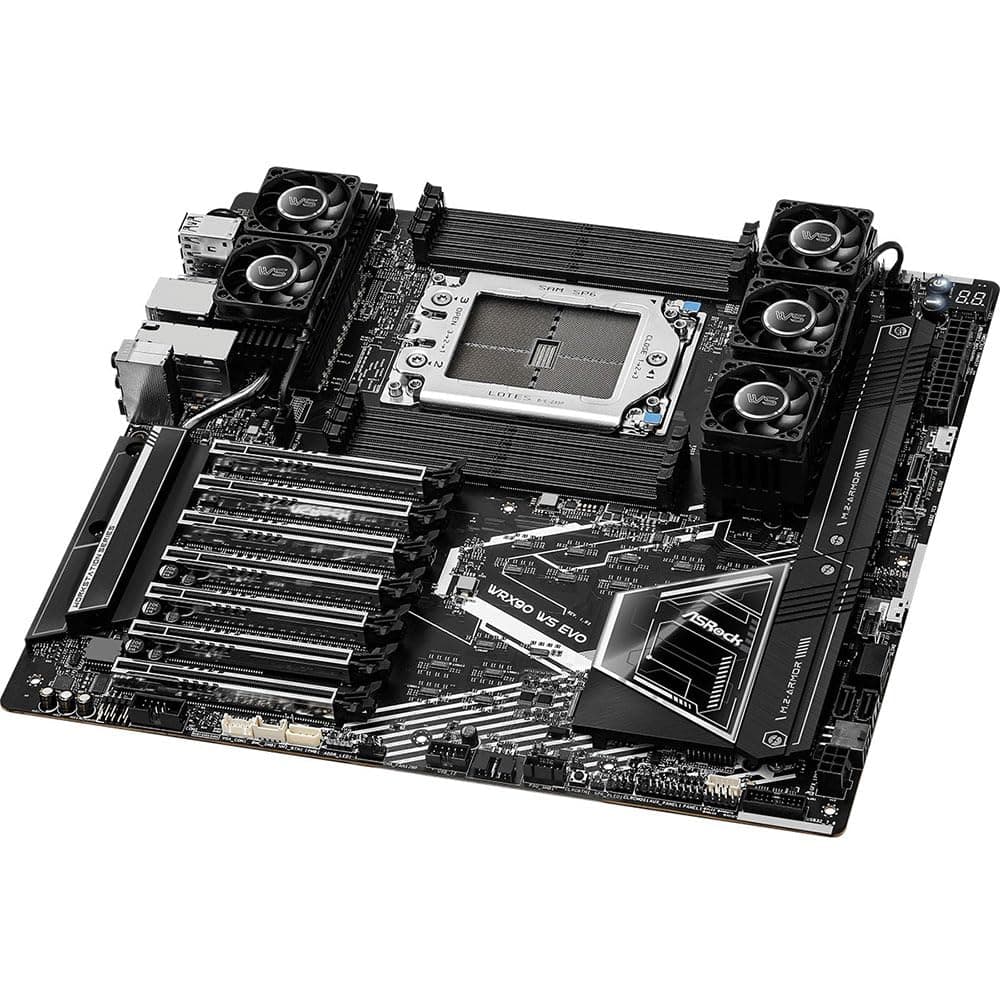

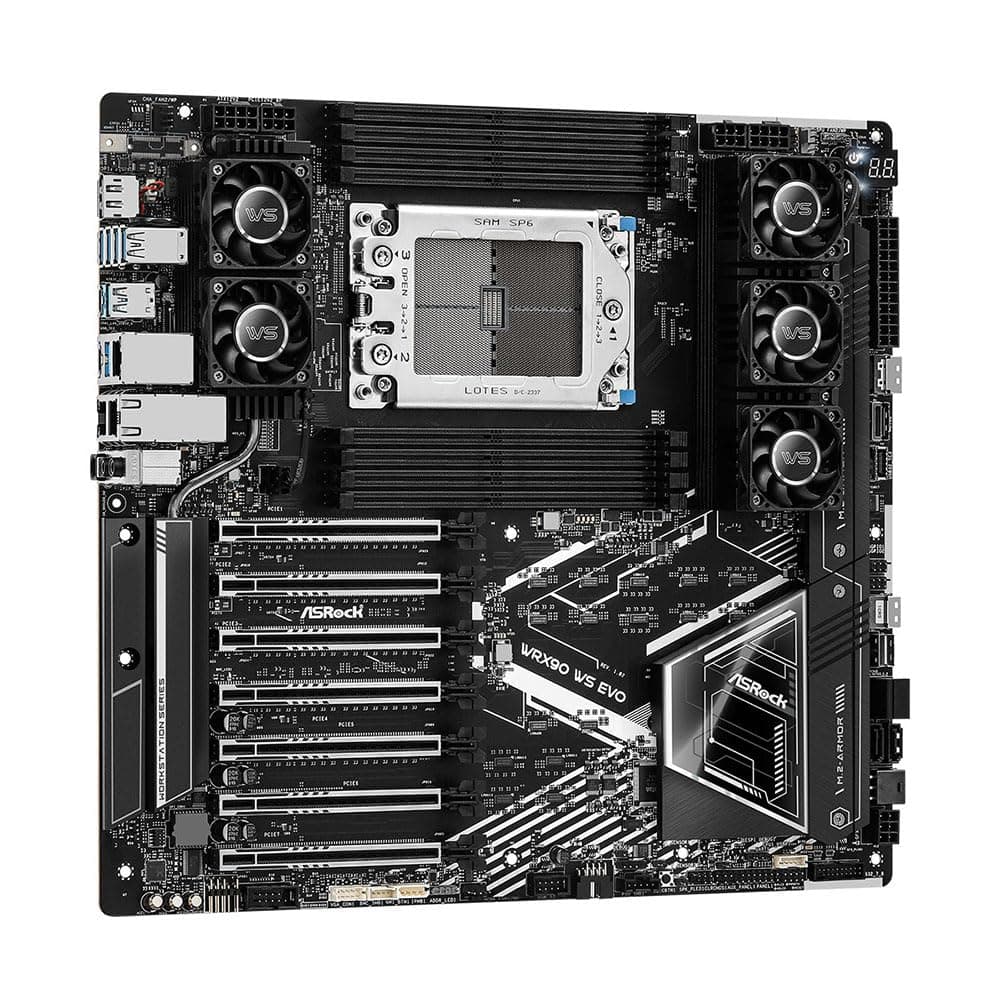

ASROCK WRX90 WS EVO MOTHERBOARD

Specifications

Processor

AMD Ryzen Threadripper PRO 9000/7000 WX-Series

Memory

8x DDR5 DIMMs, ECC Registered up to 7600+ (OC)

Storage

4 SATA3, 1x M.2 PCIe Gen5x4, 1x Hyper M.2 PCIe Gen4x4

Lan

Intel X710 dual 10G, 1x IPMI LAN

Audio

Realtek ALC1220 7.1 CH HD Audio, Nahimic

Usb

2x USB4 Type-C (Rear), 1x USB 3.2 Gen2x2 Type-C (Front)

Power

18+3+3 Power Phase Design, 110A SPS

Form factor

ATX (implied)

Graphics

Aspeed AST2600 BMC Controller – 1 x DisplayPort 1.1a with max. resolution up to 1920×1200 @ 60Hz*

Storage

CPU: – 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280/22110 PCIe Gen5x4 (128 Gb/s) mode* – 2 x MCIO Connectors (PCIe Gen5x4 or 4 x SATA3 6.0 Gb/s) – 1 x SlimSAS SFF-8654 Connector (SLIM1) (PCIe Gen4x4 or 4 x SATA3 6.0 Gb/s) Chipset: – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* – 1 x SlimSAS SFF-8654 Connector (SLIM2) (PCIe Gen4x4) – 4 x SATA3 6.0 Gb/s Connectors

Connector

2 x Thermistor Cable Headers – 1 x Front VGA Header – 1 x COM Port Header – 1 x Power LED and Speaker Header – 1 x Intelligent Platform Management Bus Header – 1 x PSU SMBus Header – 1 x BMC SMBus Header – 1 x Auxiliary Panel Header – 2 x Addressable LED Headers* – 1 x CPU Fan Connector (4-pin)** – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** – 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**** – 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) – 1 x 3 pin ATX Power Connector***** – 2 x 8 pin ATX 12V Power Connectors (Hi-Density Power Connector) (for Motherboard)****** – 2 x 6 pin PCIe 12V Power Connectors (Hi-Density Power Connector) (for Motherboard)****** – 2 x 6 pin Graphics 12V Power Connectors (Hi-Density Power Connector) (for PCIe card)******* – 1 x Right Angle Front Panel Audio Connector – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) – 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) – 2 x SGPIO Headers – 1 x CPU HP-SMBus Connector – 1 x Non Maskable Interrupt Button Header – 1 x Dr. Debug with LED – 1 x Power Button with LED – 1 x Reset Button with LED – 1 x Clear CMOS Button

Warranty

3 Years
