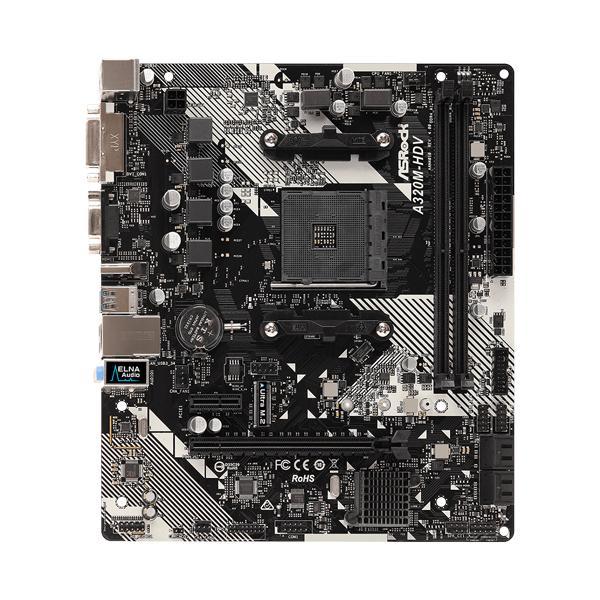

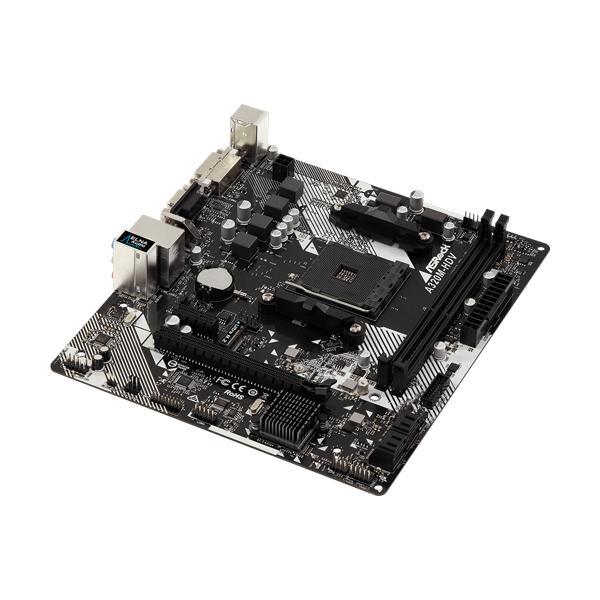

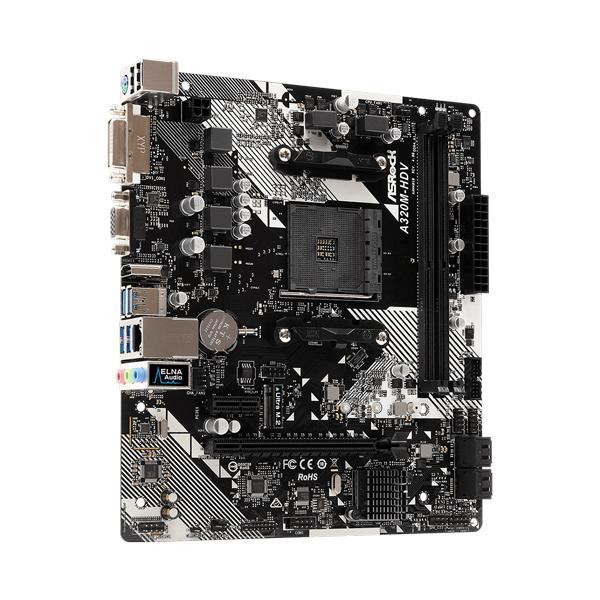

ASRock A320M-HDV R4.0 Motherboard (AMD Socket AM4/Ryzen Series CPU/Max 32GB DDR4 3200MHz Memory)
| Summary | |
|---|---|
| AMD AM4 Socket | |
| 2 DIMMs, Supports DDR4 3200+(OC) | |
| 1 PCIe 3.0 x16, 1 PCIe 2.0 x1 | |
| Graphics Output : HDMI, DVI-D, D-Sub | |
| 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps | |
| 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3) | |
| 6 USB 3.1 Gen1 (2 Front, 4 Rear) | |
| Realtek Gigabit LAN | |
| Actual support may vary by CPU. | |
Check Availability
₹4,200Free Delivery
(inclusive of all taxes)
Ships in 1-2 days
3 Years Warranty
7 day replacement
Description:
| Brand | ASRock |
| Unique Feature | ASRock Super Alloy- High Density Glass Fabric PCB- Sapphire Black PCBASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)ASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP Shop |
| CPU | Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge)- 6 Power Phase design- Supports CPU up to 105W |
| Chipset | AMD Promontory A320 |
| Memory | Dual Channel DDR4 Memory Technology- 2 x DDR4 DIMM Slots- AMD Ryzen series CPUs (Matisse) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*- AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*- AMD Ryzen series CPUs (Picasso) support DDR4 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory- AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*- AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*- AMD 7th Gen A-Series APUs support DDR4 2400 / 2133 non-ECC, un-buffered memory*- Max. capacity of system memory: 32GB**- 15μ Gold Contact in DIMM Slots, *For Ryzen Series CPUs (Picasso and Raven Ridge), ECC is only supported with PRO CPUs.Please refer to below table for DDR4 UDIMM maximum frequency support. **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. |
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI support- Supports "Plug and Play"- ACPI 5.1 compliance wake up events- Supports jumperfree- SMBIOS 2.3 support- DRAM Voltage multi-adjustment |
| Graphics | Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*- Integrated AMD Radeon™ R-Series Graphics in A-series APU*- DirectX 12, Pixel Shader 5.0- Shared memory default 2GB. Max Shared memory supports up to 16GB.**- Three graphics output options: D-Sub, DVI-D and HDMI- Supports Triple Monitor- Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz- Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)- Supports HDCP 1.4 with DVI-D and HDMI 1.4 Ports- Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports *Actual support may vary by CPU**The Max shared memory 16GB requires 32GB system memory installed. |
| Audio | 7.1 CH HD Audio (Realtek ALC887 Audio Codec)- Supports Surge Protection- ELNA Audio Caps |
| LAN | PCIE x1 Gigabit LAN 10/100/1000 Mb/s- Realtek RTL8111H- Supports Wake-On-LAN- Supports Lightning/ESD Protection- Supports Energy Efficient Ethernet 802.3az- Supports PXE |
| Slots | AMD Ryzen series CPUs (Matisse, Summit Ridge and Pinnacle Ridge)- 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*AMD 7th A-Series APUs- 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)*AMD Ryzen series CPUs (Picasso, Raven Ridge)- 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)*AMD Athlon series CPUs- 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode)*- 1 x PCI Express 2.0 x1 Slot *Supports NVMe SSD as boot disks |
| Storage | 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug- 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with A-Series APU and Athlon series APU)* *Supports NVMe SSD as boot disksSupports ASRock U.2 Kit |
| Connector | 1 x COM Port Header- 1 x TPM Header- 1 x Chassis Intrusion and Speaker Header- 1 x CPU Fan Connector (4-pin)*- 2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin)**- 1 x 24 pin ATX Power Connector- 1 x 4 pin 12V Power Connector- 1 x Front Panel Audio Connector- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)- 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.**The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power. |

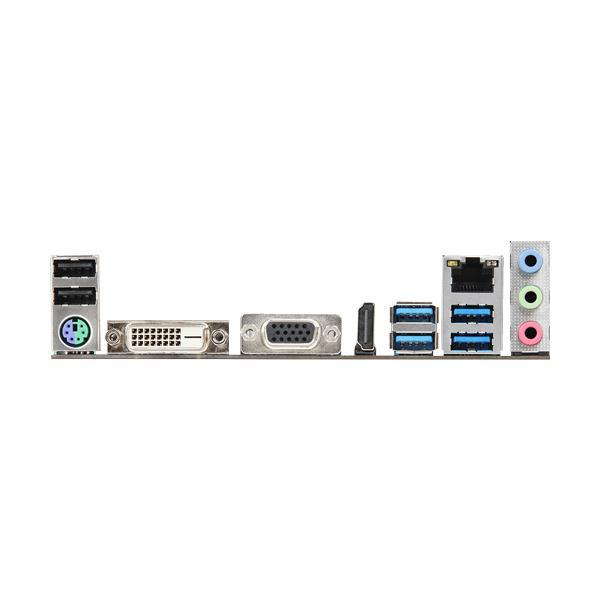

| Rear Panel I/O | 1 x PS/2 Mouse/Keyboard Port- 1 x D-Sub Port- 1 x DVI-D Port- 1 x HDMI Port- 2 x USB 2.0 Ports (Supports ESD Protection)- 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)- HD Audio Jacks: Line in / Front Speaker / Microphone |
| Software and UEFI | Software- ASRock Motherboard Utility (A-Tuning)- ASRock APP Charger- ASRock XFast LANUEFI- ASRock Full HD UEFI- ASRock Instant Flash- ASRock Easy RAID Installer *These utilities can be downloaded from ASRock Live Update & APP Shop. |
| Support CD | Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| Accessories | Quick Installation Guide, Support CD, I/O Shield- 2 x SATA Data Cables- 1 x Screw for M.2 Socket |
| Hardware Monitor | CPU/Chassis temperature sensing- CPU/Chassis Fan Tachometer- CPU/Chassis Quiet Fan- CPU/Chassis Fan multi-speed control- CASE OPEN detection- Voltage monitoring: +12V, +5V, +3.3V, Vcore |
| Form Factor | Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm- Solid Capacitor design |
| OS | Microsoft® Windows® 10 64-bit |
| Certifications | FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required) |
| Warranty | 3 Years |
| Country Of Origin | China |
