Asus

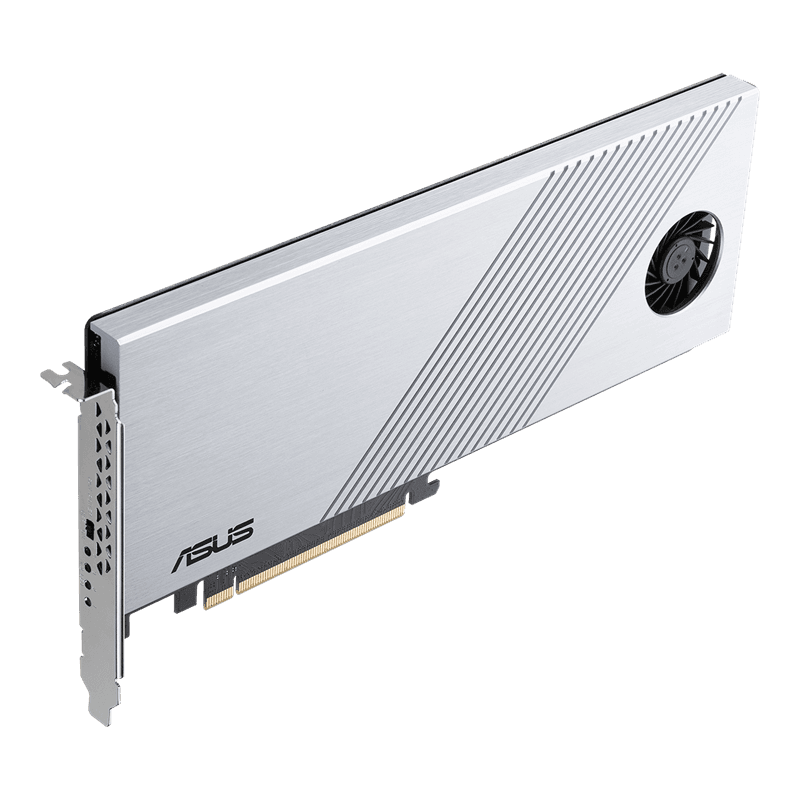

ASUS Hyper Gen4 M.2 X16 PCIe 4.0 X4 Expansion Card Supports 4 NVMe M.2 up to 256Gbps for AMD 3rd Ryzen sTRX40, AM4 Socket and Intel VROC NVMe Raid
| Summary | |
|---|---|
| Two-phase power solution with up to 14-watt output supports the latest NVMe drives | |
| Large heatsink and active fan reduces M.2 SSD temperatures for unthrottled transfer speeds and enhanced reliability | |
| Adapted server-grade PCB supports up to four PCIe 4.0/3.0 M.2 drives, with up to 256 Gbps bandwidth for smooth data transfers | |
| Compatible with AMD TRX40/X570 PCIe 4.0 for NVMe RAID and supports Intel® platform RAID-on-CPU functions | |
| Also support other vendors’ motherboards via PCIe bifurcation in BIOS setting | |
Description:
- RAID on CPU: The ASUS Hyper M.2 x16 Gen 4 Card is compatible with the Intel® X299, Z390, Z370 and future platforms' RAID-on-CPU function, and supports PCIe 4.0 NVMe RAID on the AMD TRX40 and X570 platforms. Unused CPU PCle lanes can be assigned to storage, allowing you to create a bootable RAID array with up to four M.2 SSDs.
- One card, 8X the bandwidth: The ASUS Hyper M.2 x16 Gen 4 Card uses PCIe 4.0, which doubles the bandwidth per lane compared to PCIe 3.0. With four M.2 slots, it offers up to 256 Gbps of bandwidth per card, 8X the bandwidth of a single PCIe 3.0 drive.
- Design for unthrottled transfer speed: The ASUS Hyper M.2 x16 Gen 4 Card has four M.2 slots — supporting both PCIe 3.0 and 4.0 — that allow you to expand your system with high-performance SSD storage. Designed for the latest generation of NVMe drives, the card features an upgraded power supply that provides up to 14W of power per drive, as well as a large heatsink and active fan to ensure that drives stay cool for optimum performance.
| Brand | Asus |
| Interface | PCIe 4.0/3.0 x16 interface, compatible with PCIe x8 and x16 slots, support data transfer rates up to 256 Gbps. |
| External Connectors | Up to 4 x M.2 slots (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0/3.0) |
| LED & Button | 1 x M.2 FAN Power Switch, 4 x M.2 access LEDs |
| Dimensions | 27 (L)*12.2(W) *1.5(H)cm |
| Warranty | 1 Year |
| Country Of Origin | China |
