Description:

• Unmatched Power. Unmatched Creative Freedom.
• NVIDIA Quadro P1000—Delivering Demanding Visual Computing Workflow Performance.
• The new Quadro P1000 combines the latest GPU architecture and display technologies, delivering up to 60% better performance than the previous generation. Powered by NVIDIA Pascal GPU technology, the P1000 is the most powerful low-profile professional graphics solution available, providing professional users with the most memory and best performance available in a small form factor workstation graphics card.
• With professional customers looking to minimize the desktop footprint of their workstation without compromising performance, small form factor computing solutions are becoming more common. Today’s professional applications require small form factor workstations to provide full size features and performance in a compact package.
• The P1000’s advanced and power efficient Pascal architecture GPU, 4K and 5K display support, and extensive ISV certification provide the most powerful low profile graphics solution available, delivering the performance and capabilities required by demanding professional applications in a compact and powerful professional graphics card. An expansive visual workspace of up to four 4K displays lets professionals view their designs, scenes or projects in stunning detail.
• Manufacturing Solutions:
• Media & Entertainment Solutions
• Editors can work in real time with HDR content and up to 5K full resolution.
• Artists working with 3D models or 2D imagery can realize better performance with assets stored in dedicated high performance graphics memory.
• Create and play back ultra-high quality HDR content with H.264/HEVC encode and decode engines.
• Combine multiple P1000 cards to create expansive visual display solutions.
• AEC Solutions:
• Architects can create larger models, viewing 2D and 3D designs and plans, interacting with them in real time with no lag.
• Urban designers can create models with more detail and complexity.
• GPU Performance Features:
• Pascal GPU Technology
• Based on state-of-art 14nm FinFET process technology with 640 CUDA cores, the Quadro P1000 provides performance and efficiency for CAD, DCC and visualization professionals in small and power efficient form factor.
• Frame Buffer and Memory Bandwidth
• 4GB GDDR5 memory with up to 80 GB/s memory bandwidth delivers the performance boost and responsiveness demanded by entry level graphics applications.
• Pascal Dynamic Load Balancing
• Dynamically allocate GPU resources for graphics and compute tasks as needed to maximize resource utilization.
• H.264 and HEVC Encode/Decode Engines
• Deliver faster than real-time performance for transcoding, video editing, and other encoding applications with one dedicated H.264 and HEVC encode engines and a dedicated decode engine that are independent of 3D/compute pipeline.
• NVIDIA GPU Boost 3.0
• Achieve higher application performance without exceeding the power and thermal envelope of the board. Pascal GPU technology maximizes the boost potential of the GPU.
• Image Quality Features:
• Full-Scene Antialiasing (FSAA)
• Dramatically reduce visual aliasing artifacts or "jaggies" with up to 64X FSAA (128X with SLI) for unparalleled image quality and highly realistic scenes.
• 16K Texture and Render Processing
• Texture from and render to 16K x 16K surfaces to support applications that demand the highest resolution and quality image processing.
• Pascal Memory Compression
• Increase bandwidth by up to 20% by reducing the amount of data fetched from memory for each frame with fourth generation, lossless delta compression.
• Display Features:
• NVIDIA Quadro MOSAIC Technology
• Transparently scale the desktop and applications across up to 4 GPUs and 16 displays from a single workstation while delivering full performance and image quality, optimized for still image visualizations and unified desktops.
• DisplayPort 1.4
• Support four 4K monitors at 60Hz, or two 5K at 60Hz, the P1000 supports HDR color for 4K at 60Hz for 10/12b HEVC decode and up to 4K at 60Hz for 10b HEVC encode.
• HDR Ready
• Built in compatibility with High Dynamic Range (HDR) TV’s and Display devices (Windows only), whether it’s a custom application or video, which will be accelerated by the on chip 4K at 60Hz 10bpp HEVC decode or up to 4K at 60Hz for 10bpp HEVC encode.
• NVIDIA NVIEW Advanced Desktop Software
• Gain unprecedented end-user control of the desktop experience for increased productivity in single large display or multi-display environments.
• OpenGL Quad Buffered Stereo Support
• Provide a smooth and immersive 3D Stereo experience for professional applications.
• Software Support:
• NVIDIA CUDA Parallel Computing Platform
• Natively execute standard programming languages like C/C++ and Fortran, and APIs such as OpenCL, OpenACC and Direct Compute to accelerate techniques such as ray tracing, video and image processing, and computation fluid dynamics.
• NVIDIA Enterprise-Management Tools
• Maximize system uptime, seamlessly manage wide-scale deployments and remotely control graphics and display settings for efficient operations. Multi-GPU Technology.
• NVIDIA Multi-GPU Technology
• Combine the visualization and interactive design capability of multiple GPUs by leveraging a mix of Quadro GPUs to dramatically improve the production workflow.
• Supported Platforms:
• Microsoft Windows 10 (64- and 32-bit)
• Microsoft Windows 8.1 and 8 (64- and 32-bit)
• Microsoft Windows 7 (64- and 32-bit)
• Microsoft Windows Server 2008 (64- and 32-bit)
• Microsoft Windows Server 2012
• Microsoft Windows Server 2012 R2 64
• Microsoft Windows Server 2016
• Linux – Full OpenGL implementation, complete with NVIDIA and ARB extensions (64- and 32-bit)
• Minimum System Hardware Requirements:
• Intel Core i5, i7, Xeon or later
• AMD Phenom or Opteron-class or later
• PCIe x16 Gen 3 (preferred) expansion slot
• 2 GB or more of system memory, 8 GB recommended
• 200MB of available disk space for full driver installation
• Blu-ray or DVD-ROM drive
• Internet connection (if preferred for driver installation)
• DisplayPort (preferred) displays
• DVI display(s) with purchase of optional mDP to DVI-D SL adapter(s)
• HDMI display(s) with purchase of optional mDP to HDMI adapter(s)
• VGA display(s) with purchase of optional mDP to VGA adapter(s)
• 3D Graphics Architecture
• Scalable geometry architecture
• Hardware tessellation engine
• NVIDIA GigaThread engine with dual copy engines
• Shader Model 5.1 (OpenGL 4.5 and DirectX 12)
• Up to 32K x 32K texture and render processing
• Transparent multisampling and super sampling
• 16x angle independent anisotropic filtering
• 32-bit per-component floating point texture filtering and blending
• 64x full scene antialiasing (FSAA)
• Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, HEVC, MVC, VC1, DivX (version 3.11 and later), and Flash (10.1 and later)
• Dedicated H.264 and HEVC Encoder
• Blu-ray dual-stream hardware acceleration (supporting HD picture-in-picture playback)
• NVIDIA GPU Boost (automatically improves GPU engine throughput to maximize application performance)
• NVIDIA CUDA Parallel Processing Architecture
• SM architecture (NVIDIA Pascal streaming multi-processor design that delivers greater processing and efficiency)
• Dynamic Parallelism (GPU dynamically spawns new threads without going back to the CPU)
• API support includes: CUDA C, CUDA C++, DirectCompute 5.0, OpenCL, Java, Python, and Fortran
• Advanced Display Features:

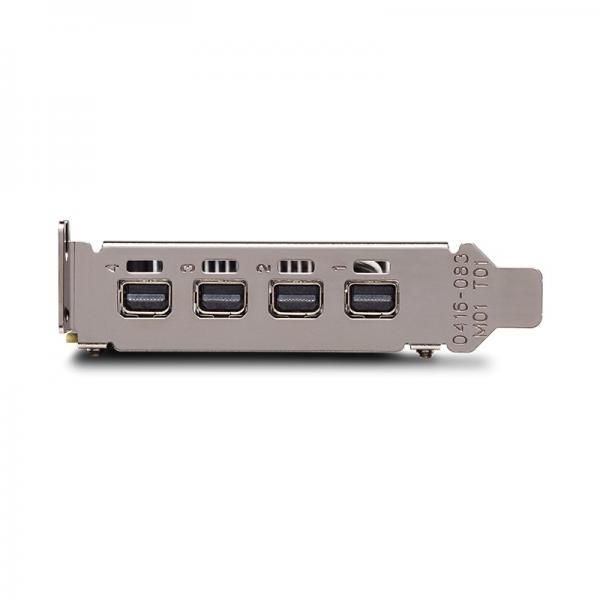

• Support for any combination of four connected displays
• Four DisplayPort 1.4 outputs supporting resolutions such as 3840 x 2160 at 120Hz and 5120 x 2880 at 60Hz
• HDR support over DisplayPort 1.4 (SMPTE 2084/2086, BT. 2020) (4K at 60 Hz 10b/12b HEVC Decode, 4K at 60 Hz 10b HEVC Encode)
• HDCP 2.2 support over DisplayPort, DVI, and HDMI connectors
• 12-bit internal display pipeline (hardware support for 12-bit scanout on supported panels, applications, and connection)
• NVIDIA 3D Vision technology, 3D DLP, Interleaved, and other 3D stereo format support
• Full OpenGL quad buffered stereo support
• Underscan/overscan compensation and hardware scaling
• NVIDIA NVIEW multi-display technology
• Support for NVIDIA MOSAIC
• DisplayPort and HDMI Digital Audio
• Support for the following audio modes: Dolby Digital (AC3), DTS 5.1, Multi-channel (7.1) LPCM, Dolby Digital Plus (DD+), and MPEG-2/MPEG-4 AAC
• Data rates of 44.1 KHz, 48 KHz, 88.2 KHz, 96 KHz, 176 KHz, and 192 KHz
• Word sizes of 16-bit, 20-bit, and 24-bit
• Package Contains:
• NVIDIA Quadro P1000 professional graphics board with attached low-profile (SFF) bracket
• Unattached full-height (ATX) bracket
• Four mDP to DP adapters
• Software installation disc for Windows 10, 8.1, 8, and 7 (64- and 32-bit)
• Printed Quick Start Guide
• Available Accessories:
• Connect the Quadro P1000 to HDMI displays at resolutions up to 4K with PNY Part Number MDP-HDMI-FOUR-PCK. The four included latching (locking) Mini DisplayPort to HDMI adapters are recommended by NVIDIA, provide outstanding image quality, and are built to professional standards.
• Drive four DVI-D SL displays with the Quadro P1000 with PNY Part Number MDP-DVI-FOUR-PCK. The four provided latching (locking) Mini DisplayPort to DVI-D SL adapters are recommended by NVIDIA, deliver superb image quality, and are built to professional standards.
• Support four VGA displays with the Quadro P1000 with PNY Part Number MDP-VGA-FOUR-PCK. The four bundled latching (locking) Mini DisplayPort to VGA adapters are recommended by NVIDIA, deliver great image quality, and are built to professional standards.
• Warranty & Support:
• PNY provides unsurpassed service and commitment to its professional graphics customers offering: 3-year Warranty, free pre- and post-sales support, dedicated Quadro Field Application engineers and direct tech support hot lines. In addition, PNY delivers a complete solution including the appropriate adapters, cables, brackets, software installation disc and documentation to ensure a quick and successful install.

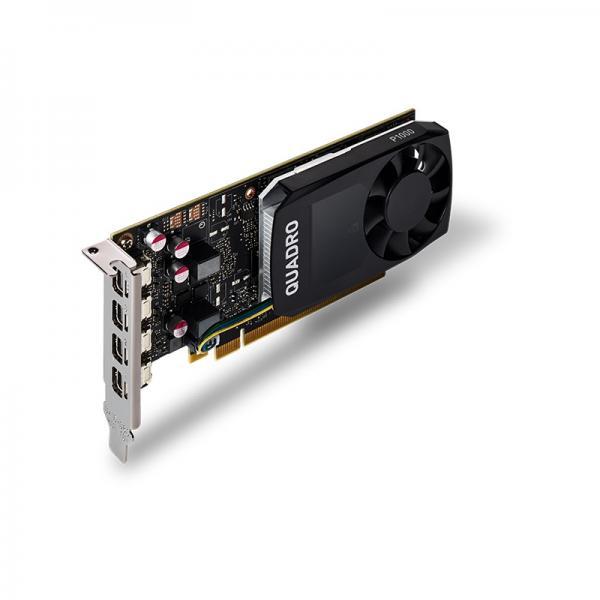

• The NVIDIA® Quadro® P1000 workstation graphics card, powered by NVIDIA Pascal™ GPU technology features 4GB GDDR5 on board memory. It also has advanced display technologies in a low-profile form factor to deliver amazing graphics performance and support for four 4K displays.
• Designers and engineers can create models with larger numbers of components and more complex assemblies.
• Support for up to four 4K displays provides for an expansive desktop enabling designers to work with multiple apps simultaneously.
• Quadro P1000 supports displays at up to 5K resolution.
